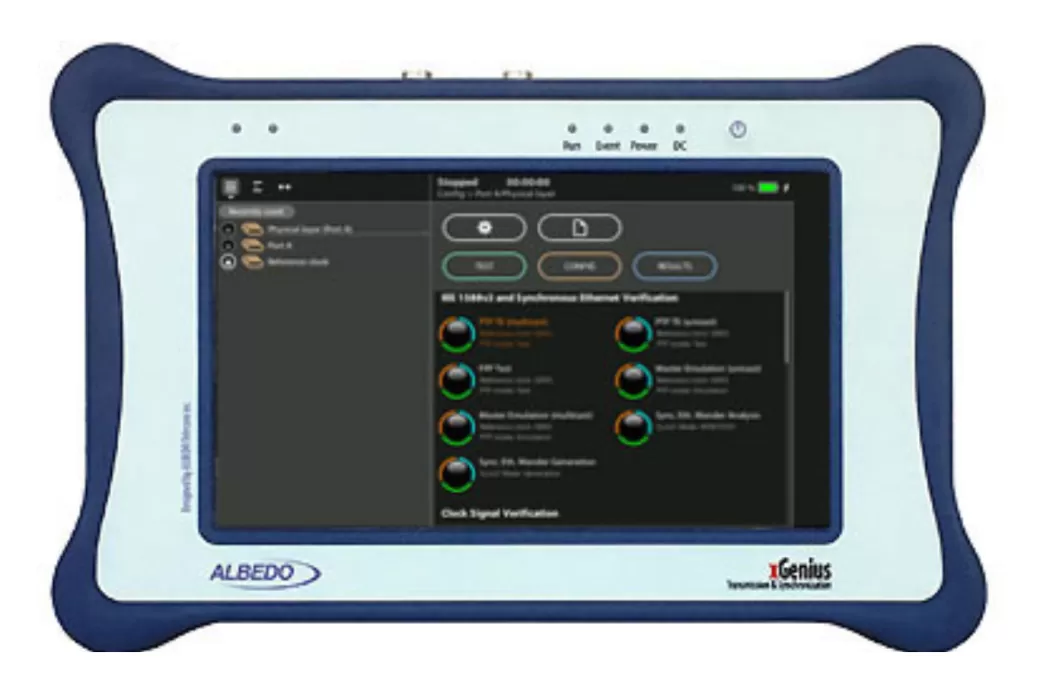

The xGenius is an advanced handheld tester designed for testing and analyzing transmission and synchronization networks, offering a broad range of functionalities that make it ideal for both laboratory and field use.

With its rugged, compact design and an intuitive touchscreen interface, the xGenius simplifies the process of analyzing complex networks, ensuring precise results and flexibility for various applications.

Key Features and Advantages

1. Versatile and Compact Design: The xGenius is a lightweight device weighing just 1.9 kg, making it easy to transport and use on the go. With dimensions of 260 x 160 x 63 mm, it can easily fit into a small bag for field tests. Despite its portability, it is robust and built to withstand tough conditions, perfect for both indoor laboratory and outdoor field environments.
2. Wide Range of Interfaces: The xGenius is equipped with multiple interfaces, including:

• Ethernet (SFP/SFP+ for 100MbE, 1GbE, and 10GbE)
• T1/E1 (RJ45 and BNC ports)
• Datacom (supporting various V.11, V.24, V.35, etc.)
• C37.94 (for synchronization)
• GNSS and PPS ports for time synchronization.

This wide range of interfaces allows for seamless testing of different network protocols and technologies, making it highly adaptable to various testing scenarios.

3. Flexible Operation Modes: The tester supports multiple operation modes, including:

• Performance and Quality Tests
• One-way Delay and Wander Tests
• Synchronization Tests (PTP, SyncE)

This flexibility enables users to test the performance, quality, and timing accuracy of transmission networks with precision. Additionally, it supports master/slave PTP emulation, allowing for comprehensive network testing under various configurations.

4. Precision and Stability: One of the standout features of the xGenius is its high-accuracy internal clock system. It includes a Rubidium clock that is GNSS disciplined, ensuring high frequency and time accuracy even in challenging conditions. The device’s time accuracy is impressive, with ±50 ns at 24 hours of GNSS lock and the ability to hold stable time synchronization with ±1.0μs over a full day in holdover mode.
5. Battery-Operated and Long-Lasting: The xGenius is powered by two Lipo batteries, which offer long durations, ensuring that you can complete your tests in the field without constantly worrying about recharging. The battery performance varies based on operational conditions, ensuring reliability in critical environments.
6. Easy Software Upgrades: You can start with the basic configuration of a dual-port 10GbE tester and later upgrade the device with additional interfaces and functionalities through simple software upgrades. This makes the xGenius a highly scalable and future-proof tool that adapts to the evolving needs of users.

Testing Capabilities

1. Ethernet Testing:

• Latency, Delay, and Packet Loss testing via RFC 2544 and eSAM (Y.1564).
• Traffic generation for both Layer 2 and Layer 4 PRBS with continuous, burst, ramp, and random modes.
• QoS (Quality of Service) metrics including Latency, Delay Variation, Loss Ratio, and Service Availability.

2. Synchronization and Time Testing:

• PTP (Precision Time Protocol) testing and analysis, including time error (TE) measurements, floor delay packet population, and wander analysis (TIE, MTIE, TDEV).
• SyncE and Synchronous Ethernet testing, including ESMC and SSM generation and decoding.
• 1PPS (One Pulse Per Second) time error and wander analysis.

3. Protocol and BER (Bit Error Rate) Testing:
   The xGenius supports a range of protocol analysis functions, including:

• Packet capture and analysis in PCAP format.
• Zero-delay technology for accurate packet capture.
• RFC 6349 TCP testing with customizable MTU and MSS settings, allowing for network performance benchmarking.

4. Legacy Support: The tester supports T1, E1, and PDH (Plesiochronous Digital Hierarchy) protocols, allowing users to test legacy systems alongside modern high-speed networks.
5. Power-over-Ethernet (PoE) Testing: The xGenius supports PoE and PoE+ testing, enabling users to measure voltage and current delivered over Ethernet cables.

Data Storage and Reporting

The device provides sufficient storage capacity to hold results for up to one week. Test data can be easily exported in multiple formats (PDF, TXT, CSV) through the USB interface or SD card. Additionally, results can be remotely exported to a host via Ethernet/IP for centralized analysis and reporting.

Final Words

Khushi Communications is one of the best Ethernet testers and Ethernet traffic analyzers supplier in India. These tools help check and analyze Ethernet networks, ensuring they work properly. The company is known for providing reliable and high-quality products, making it a trusted choice for businesses needing network testing equipment.
