Modern packet networks are facing new challenges as the demand for data communication grows rapidly. One of the most important challenges is the need for accurate synchronization between network elements. Unlike older synchronous networks (SONET/SDH), modern packet networks are designed to be asynchronous. This makes synchronization a more complex task.

Why is Synchronization Important?

Older networks needed only frequency synchronization. But modern networks, like LTE and 5G, need more than just frequency synchronization. They also require precise Phase and Time synchronization. The required accuracy is now in the range of a few nanoseconds. This level of precision is necessary for ensuring smooth communication and reliable performance in networks.

The Role of Precision Time Protocol (PTP)

To achieve this high level of synchronization, IEEE introduced the Precision Time Protocol (PTP), also known as IEEE 1588. PTP is a packet-based protocol that works in a master-slave structure. It allows precise synchronization of Frequency, Phase, and Time (ToD – Time of Day) over packet networks. This is done by exchanging time-stamped Sync messages between network elements.

When implemented properly with the right hardware, PTP can achieve extremely high accuracy, reaching the nanosecond level. However, to maintain this accuracy, the entire network must be designed with proper timing elements.

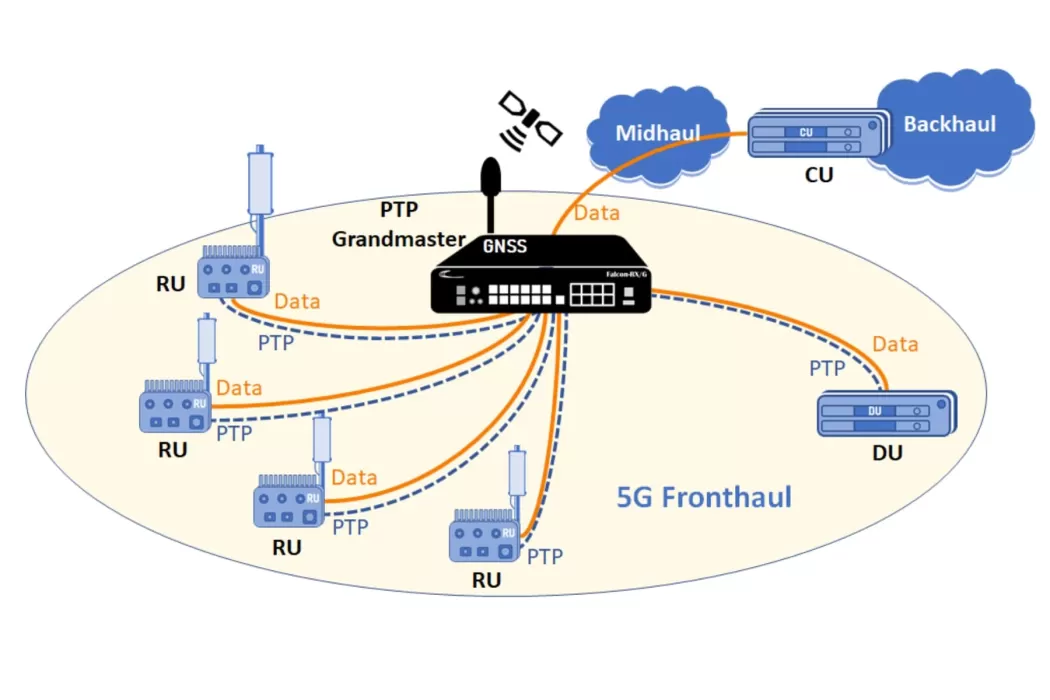

Components of a Timing Network

A timing transport network must include various elements to ensure accurate synchronization. These include:

1. PTP Grandmaster – This is the main timing source in the network. It has a built-in GNSS receiver and sends timing packets across the network.
2. Distribution Network – This ensures that the timing packets are delivered accurately to different parts of the network.
3. Slave Devices – These are the network elements that receive the timing information from the Grandmaster.

Each of these components plays a key role in maintaining synchronization.

Choosing the Right PTP Grandmaster

A PTP Grandmaster is the main source of timing in a network. It sends out synchronization signals to all network elements. Choosing the right Grandmaster is essential for achieving accurate synchronization. Here are some key factors to consider:

1. Accuracy

Accuracy is the most important factor. It depends on the overall system design, the precision of timestamping, and the performance of the GNSS receiver. The system must use advanced algorithms and filtering methods to achieve high accuracy.

2. Stability

Stability refers to how well the Grandmaster maintains timing over time. This depends on the type and quality of the internal oscillator. There are different types of oscillators, such as:

• OCXO (Oven-Controlled Crystal Oscillator) – Provides basic stability.
• Rubidium Clocks – Highly stable and used for precise timing applications.

A stable oscillator is also important for "holdover" mode. In holdover mode, the Grandmaster continues to provide timing even if all external signals are lost.

3. Scalability

Scalability means the Grandmaster should be able to support networks of different sizes. It should work well in both small networks and large networks with many slave devices. Scalability also depends on the number of physical interfaces and PTP clock instances the Grandmaster can support.

4. Resiliency

Resiliency means the ability to keep the network running even if some timing sources fail. A good Grandmaster should support multiple timing inputs. This allows it to switch to an alternative source if the GNSS signal is lost. This is crucial for ensuring continuous and reliable network operation.

The Role of a GPS Antenna Supplier

For a PTP Grandmaster to function properly, it must receive an accurate timing signal from a GNSS (Global Navigation Satellite System) receiver. A high-quality GPS antenna supplier plays a crucial role in providing reliable antennas that ensure strong GNSS signal reception. The performance of the GPS antenna directly affects the accuracy of the PTP Grandmaster, making it essential to choose a trusted supplier who offers high-quality antennas for timing applications.

Ending

Modern packet networks require highly precise synchronization to function effectively. Unlike older networks, they need not just Frequency synchronization but also Phase and Time synchronization with nanosecond accuracy. The Precision Time Protocol (PTP) provides a solution for achieving this accuracy. However, for PTP to work properly, the network must have the right elements, including a high-quality PTP Grandmaster.

When selecting a PTP Grandmaster, factors like accuracy, stability, scalability, and resiliency must be considered. A well-chosen Grandmaster ensures that the network remains synchronized and reliable, even in challenging conditions.
