μFalcon-MX/G

10G Edge Grandmaster Clock

The µFalcon-MX/G is a compact, high performance, Edge Grandmaster/GW Clock, with service aggregation and demarcation capabilities, delivering high end Timing coupled with Carrier Ethernet services.

This product extensively supports the evolving needs for Timing and Synchronization in a constantly growing number of applications. Geared with integrated GNSS receiver, highly accurate timestamping engines and dedicated packet generators and responders, it delivers consistent and robust high performance

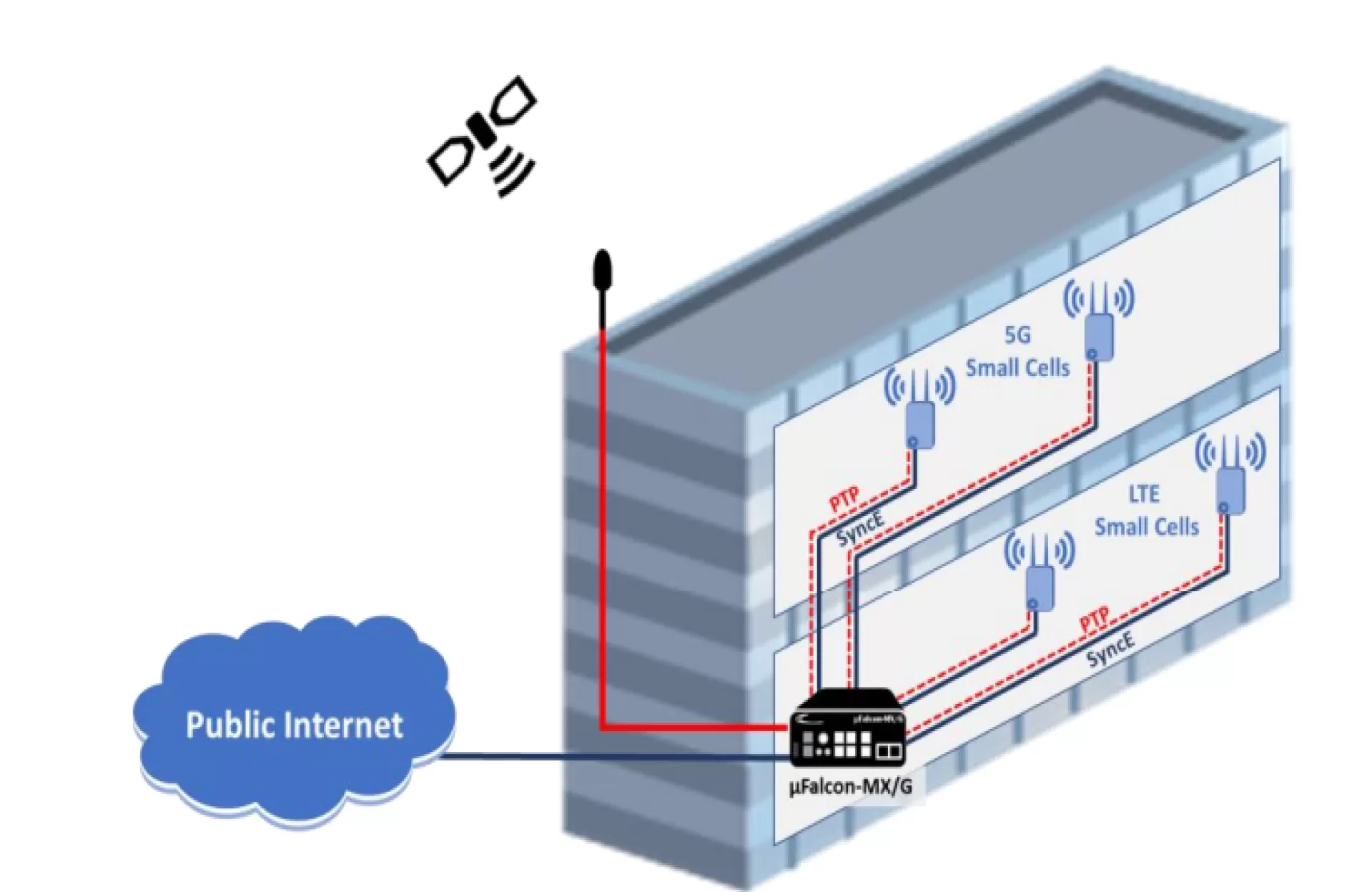

Typical Application: Private LTE/5G/CBRS

  • The µFalcon-MX/G supports the Precision Time Protocol (PTP, IEEE1588v2), Synchronous Ethernet (SyncE) and NTP packet-based timing services. These are coupled with a market leading variety of interfaces, including 10/100/1000BaseT and 100/1000/2500M/10G optical interfaces (supporting all common types of SFPs). These provide unparalleled flexibility in deployment and connectivity.
  • The µFalcon-MX/G can support numerous applications requiring timing. The most common one being mobile backhaul and fronthaul, for LTE/5G, both macro sites and small cells.
  • The µFalcon-MX/G’s extensible hybrid (ASICFPGA) Hardware architecture allows for ultimate flexibility and performance.
  • The µFalcon-MX/G’s capacity for Ethernet services delivery, including MEF standards is based on a highly advanced timing aware, switching core.
  • All MEF defined services (EPL, EVPL, ELAN, etc) can be configured on the µFalcon-MX/G series and can also be protected through use of high-performance mechanisms, based on G.8031, G.8032, etc., for link, path, and ring resilience.

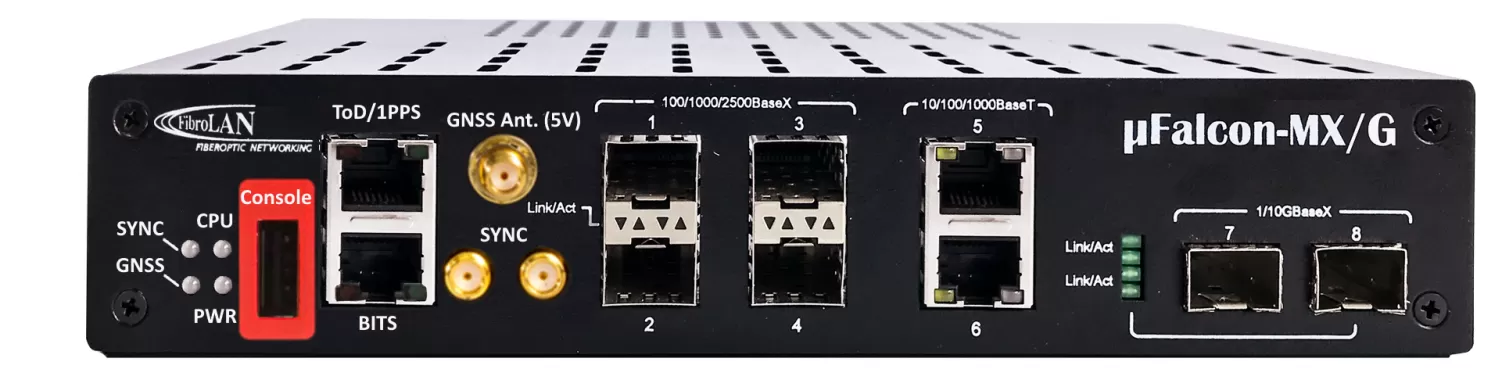

Module Image

Key Features

10G service aggregation/demarcation unit for business Ethernet and mobile backhaul

Based on 3rd generation Falcon platform with 34Gbps non-blocking throughput

Full set of MEF CE2.0 compliant services

Sync and Timing options with GNSS/GPS, SyncE and PTP

Advanced QoS and service level traffic management

Complete OAM toolbox (802.1ag, Y.1731, RFC2544, Y.1564) for OPEX reduction

Advanced high speed protection mechanisms for link, path, and ring service resilience

2.5Gbps support on optical ports

Layer 3 static routing

Compact, low power consumption, fan-less design

Applications

Market leading integrated Edge/Gateway Clock and Transport system
Ideal for timing and backhaul in private and public LTE and 5G mobile networks
Excellent fit for mobile fronthaul
High performance, high accuracy PTP Grandmaster, BC, TC and OC
Multiple timing inputs / outputs (GNSS, PTP, SyncE, ToD, 1PPS, 10MHz)
Unparalleled port configuration flexibility (100/1000/2500M and 10G)
Wire-speed forwarding on all ports
Redundancy mechanisms on both timing and transport planes
