501 Tracker Cable Locator

Trace & Determine the Depth of Wires & Metallic Pipes

The 501 Tracker II offers three methods of connection to fit every location job. Direct connection for maximum signal, inductive coupling for “live” cable, and an internal inductive antenna for underground location of buried and inaccessible cables. The lightweight receiver provides both audible and visual indications of signal strength for accurate identification. With its inductive signal detection, the 501 Tracker II underground cable and wire locator can be used on active or dead systems. Now you can quickly trace the path and determine the depth of buried wires, cables, and metallic pipes or conduit and find the ends of a cut cable without having to deactivate the systems.

Overview

Trace the path and determine the depth of buried conductors
Use on active or dead systems.
Transmitter output and receiver sensitivity are both fully adjustable for maximum accuracy.
The lightweight receiver provides both audible and visual indications of signal strength for accurate identification.
The transmitter offers three methods of connection: direct, inductive coupler, or inductive antenna.
Inductive coupler clamps around the wire or pipe for use on active lines, or where isolating the line is not an option.
Inductive antenna is built into the case housing and allows the transmitter to be placed on the ground over the wire path to radiate a signal down onto the conductor.
Underground wire locator traces over distances to 4,000 feet (1.2 km) and depths to 7 feet (2.2 m).
Adjustable sensitivity and transmitter power.

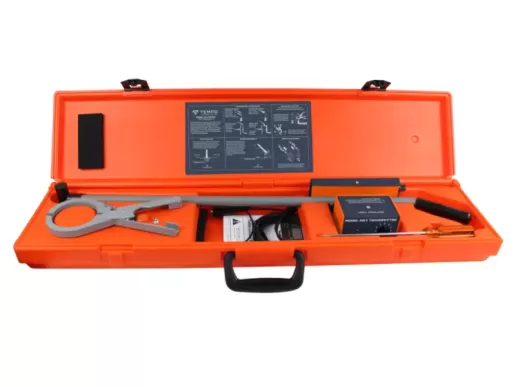

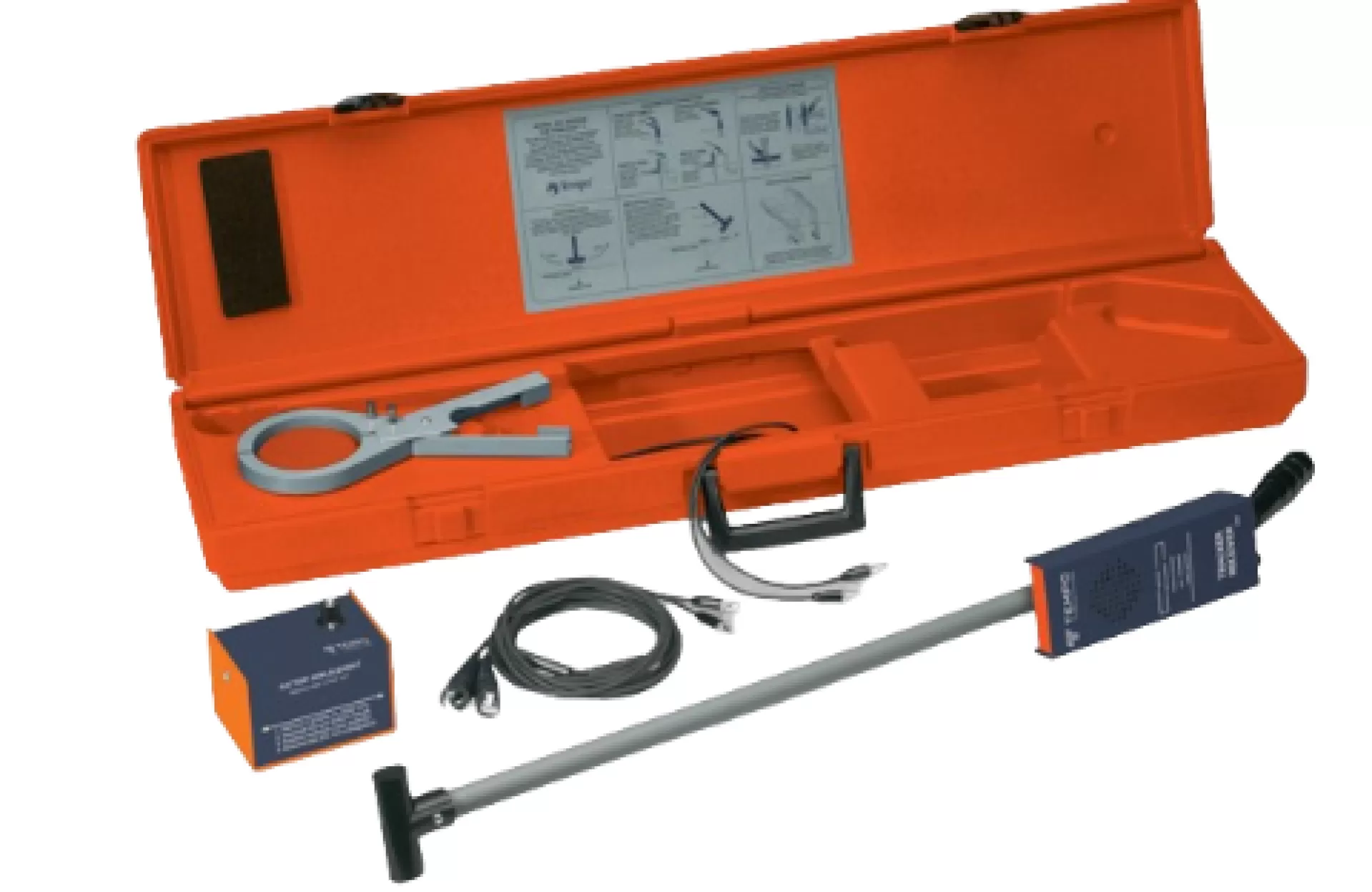

Includes transmitter assembly, receiver assembly, inductive coupler (clamp), inductive antenna (built-in), two 8 foot (2.4 m) test leads with heavy-duty alligator clips, and a durable polyethylene case.
Battery-operated (8 - AA and 1 - 9V NOT included).

Key Features

FAST Estimate the depth of cable in seconds

PRECISE Adjustable transmitter and receiver sensitivity for maximum accuracy

VERSATILE Direct connection plus clamp or inductive transmitter connection allows use on “live” cables
