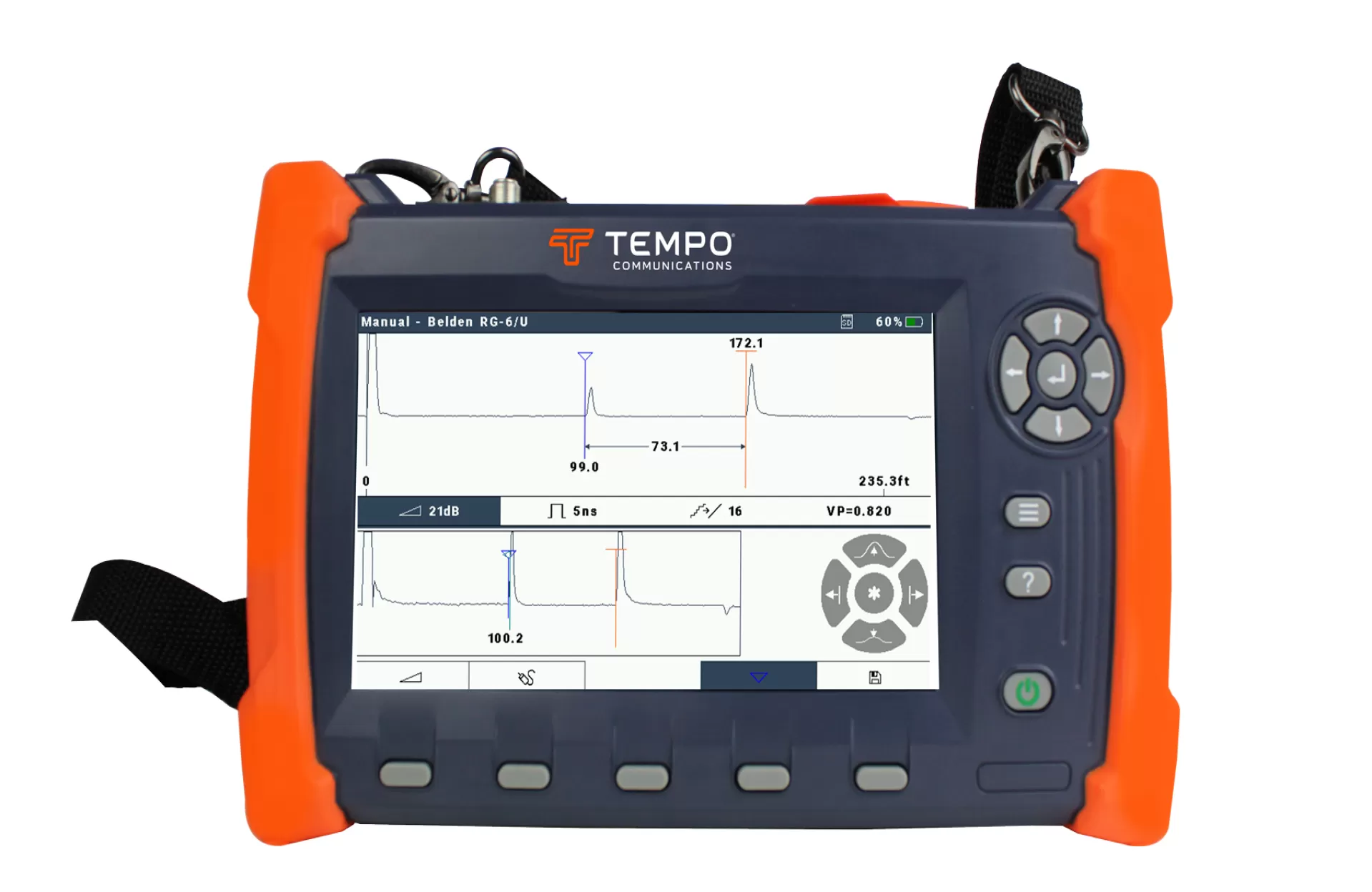

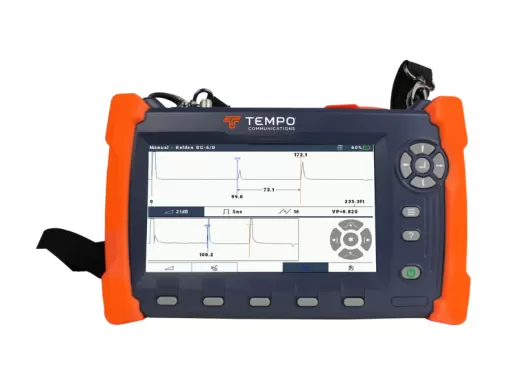

Quickly identifying faults accurately is essential for the busy cable technician: CableScout® 90 (CS90) offers a balanced mix of automation and manual testing that enables technicians to do their jobs right the first time.
The CS90 delivers the latest TDR technology in a small, lightweight and rugged design to provide unrivaled dease-of-use and coaxial cable testing performance. CS90 is perfectly usable on other cable types too, e.g.telephone or Ethernet twisted pairs. With the CS90, technicians will spend less time operating the TDR and more time repairing faults. Simply select the cable type to be tested and the CS90 does the rest. Pulse width, VP, gain, and vertical position are automatically selected and adjusted as you scan the cable.Finding the fault could not be faster, just move the cursor to the fault and use the one-button zoom function to pinpoint its location. The CS90 employs optimized pulsing and sampling, coupled with advanced filtering and signal-processing techniques.
Large, Color, HiRes Backlit Display (Readable Outdoors in Bright Conditions)
Splash, Dust, and Shock-Resistant Packaging
Zero Dead Zone
1, 5 and 25 ns pulse widths standard
FastFind™ whole cable overview
Protected 75 Ω F Connector
Intermittent Fault Location
Context-Sensitive Help Available for All Functions
Small, Portable, Lightweight Package
Internal Cable Types for Fast, Accurate Testing
Rechargeable Lithium Ion Battery for 8+ hrs. of use
Overview Window Shows Entire Cable & FastFind speeds Navigation to largest event.
Narrow Pulse Width Enables Near-End Fault ID
