G.Fast MaxTester 635G QoS Testing

Handheld Solution For Ultra- BroadBand Installation and Maintenace

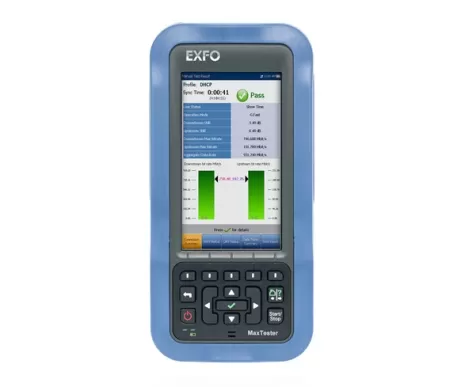

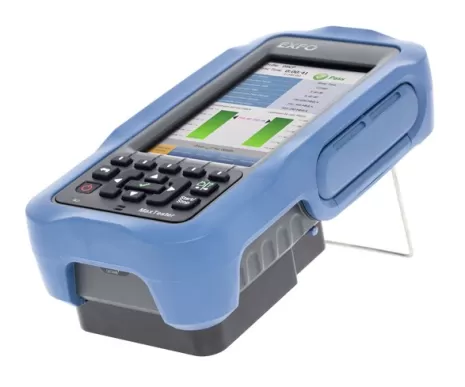

The MaxTester 635G (MAX-635G) is a complete DSL & copper test set featuring the latest in ADSL2+, VDSL2, and G.fast (ITUT G Series 9700 and 9701 recommendations for fast access to subscriber terminals) chipset based connectivity technologies. Featuring traditional copper measurements (voltage, resistance, capacitance and time domain reflectometry) and highly automated scripted tests, the MAX-635G offers everything a technician needs to complete jobs efficiently.

Key Features

Compatible with Connect for cloud-based test asset management

G fast with backwards compatibility to VDSL2 and ADSL2+ with one test tool

Spectrally compatible VDSL2 35b support and, VDSL2 and ADSL2+ bonding

Adherence to existing methods and procedures is easy with single-ended testing or via testing to a far-end device (FED), including high-voltage stressed balance testing

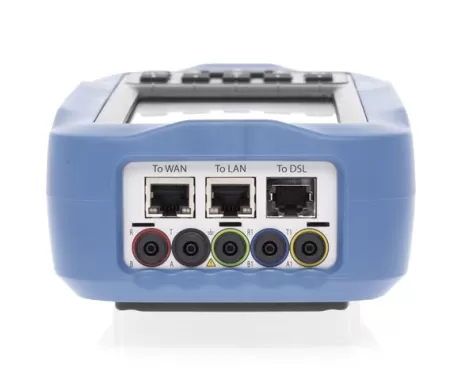

High resolution 6-inch touchscreen with dual 1 GigE ports and single test lead connection supporting both Gfast/DSL and copper testing to 35 MHz bandwidth

Designed to face the challenges of the outside plant environment, with an IEC IP54 rating

Applications

FTTx / MDU, Gfast, VDSL2 35b and VDSL2 vectored installations
Bonded-VDSL2 and ADSL2+ deployments
Multiply service assurance (Internet, IPTV, and VoIP), inclusive of Internet throughput validation using Speedtest™ by Ookla®)
Determine the maximum ADSL2+, VDSL2-17a, and VDSL2-35b data rates that a copper loop could support, prior to connecting/ provisioning the circuit and equipment, with the Max Tester’s Data Rate Prediction (ADRP) pre-qualification report
Gfast-based mobile backhaul, DAS or small cell deployments
Validate bandwidth performance and speed, using Speed test by Ookla, HTTP, FTP, or iPerf
FTTdp deployments
