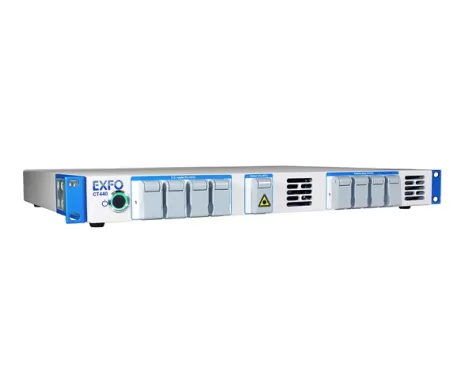

Compact tester for fast and accurate characterization of passive optical components (MUX/DEMUX, filters, splitters, etc.) and modules (ROADM, WSS). Covers the spectral range from 1240 to 1680 nm for measurements over the full telecom band. With the PDL option, simultaneously measure insertion loss and polarization dependent loss.
Fast transfer function measurement
Wavelength range: 1240 - 1680 nm (SMF model)
PM and PDL options
Wavelength resolution: 1 to 250 pm
Wavelength accuracy: ±5 pm
Dynamic range: 65 dB in a single sweep

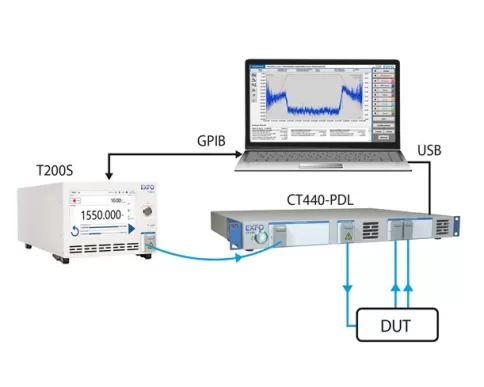

Combines up to four tunable lasers (SMF type)
Four internal detectors, expandable with synchronization
19-in rack compatible with 1U format
