xGenius 10Gigabit Ethernet Tester

xGenius is a nice handheld tester equipped with a large touch-screen to make easier the analysis and results interpretation. It is 100% suitable for labs or field use because is full equipped with IP / Ethernet / PTP / SyncE / T1 / E1 / E0 / C37.94 and Datacom interfaces, battery operated, light (1.9kg) and very rugged. The unit is able to test transmission and synchronization networks up to 10Gb/s. It supports master/slave PTP emulation. Multiple operation modes are possible and includes Performance, Quality, One-way Delay and Wander tests at all interfaces. A built-in Rubidium clock disciplined with GNSS oscillator to provides high accuracy and continue working perfectly in holdover mode.
You may buy just a last generation dual port 10GbE tester and then you may add other interfaces just when you need it by a simple and easy upgrade by code. Then you will be able to get the new firmware supporting the desired functionalities.

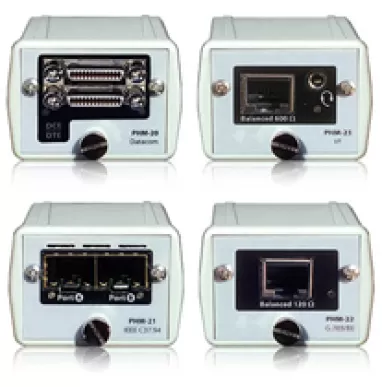

Hot swappable modules
  • C37.94
  • Datacom DTE/DCE: V.11/X.24, V.24/V.28, V.24/V.35, V.24/V.11 (V.36/RS449)
  • VF Port
  • Codirectional – G703
Ergonomics
  • Size: 260 x 160 x 63 mm
  • Weight: 1.9 kg
  • Light and easy to carry in a small bag
  • Start: Manual / Timed with optional password
Packet Capture
  • Wirespeed performance
  • Programable capture filters
  • Zero-delay technology
  • Save them in PCAP format
  • Full duplex operation
Ethernet/IP Testing
  • Streams: may use individual sour/dest. addresses and bandwidth profile
  • Internet Protocol: IPv4 / IPv6 support
  • Frames: DIX, VLAN, Q-in-Q, CoS (DSCP/PCP), MPLS, and Jumbo
  • IP with UDP or arbitrary protocol
  • DHCP for source IP and ARP for destination MAC
Counts statistics
  • Frame counts, IP traffic statistics, and bit rate
  • Top ten VLAN, MAC, IPv4 and IPv6 addresses
  • QoS: Latency, Delay variation, Loss ratio, SES, Availability, Out-of-Sequence, Duplicated
BER TestPatterns
  • Traffic generation: Continuous, Burst, Ramp, Random
  • PHY layer: RPAT, JPAT, SPAT, HFPAT, LFPAT, MFPAT, LCRPAT, SCRPAT
  • Layer 2/4 PRBS: 2e11-1, 2e15-1, 2e20-1, 2e23-1, 2e31-1
  • Layer 2/4 PRBS: all inverted versions
Symmetric/Asymmetric RFC-2544
  • Throughput
  • Latency
  • Loss
  • Back-to-back
  • System Recovery
Symmetric/Asymmetric eSAM (Y.1564)
  • Latency, Delay Variation, Loss, and Availability
  • Eight / four services (colour/not colour)
  • CIR, EIR, max, Througput
Loopback
  • L1 – L4 loopback mode
  • Traffic filtering by
  • sour/dest MAC/IP/Port
  • VLAN, CoS (DSCP/PCP)
  • Protocol
TCP test – RFC 6349
  • Modes: active (client), passive (server)
  • ALBEDO / IPerf3 endpoints in client mode
  • Configurable MTU and MSS
  • Configurable Bottleneck Bandwidth (BB) in f/s, %
  • Round-Trip Time (RTT)
  • Window Sweep at 25 / 50 / 75 / 100% of BDP size
  • Transfer Time Ratio, TCP Efficiency, Buffer Delay

Reputed Ethernet Tester Suppliers in India – Khushi Communications

We are one of the best Ethernet Tester Suppliers in India. Our company provides high-quality Ethernet testers that help you check and ensure the performance of your network connections. Whether you need to test network cables, diagnose issues, or ensure everything is working correctly, our testers are reliable and easy to use. We offer a range of Ethernet testers to meet different needs, from basic models to more advanced ones. Our products are known for their accuracy and durability which makes them a great choice for both home and professional use. At our company, we focus on delivering excellent customer service and support.

Trusted Ethernet Tester Suppliers in India – Khushi Communications

We are connected with a wide network of trusted vendors to bring you the best products. Our vendors are known for using high-quality materials and advanced manufacturing techniques. We choose our vendors carefully based on their reputation, expertise, and ability to deliver on time. We also consider their financial stability and packaging standards to ensure you receive top-notch products. Choose us for top-notch Ethernet testers and experience the best in quality and service. We are committed to providing you with the tools you need to keep your network running smoothly.

Find Out About Our Other Products in India – Khushi Communications

Explore more of our products in India -

Ethernet Traffic Analyzer
PTP Grandmaster
E1 Datacom Tester
WAN Emulator
NTP Server




Platform

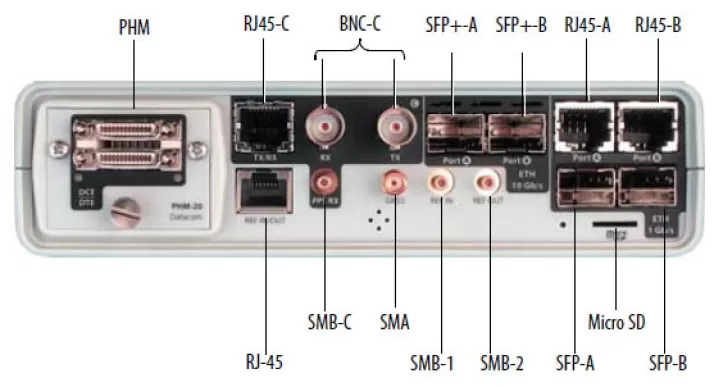

A:B ports:2 x SFP/SFP+ (100MbE, 1GbE, 10GbE, 10G WAN)

A:B ports:2 x RJ45 (10MbE, 100MbE, 1GbE)

C:D ports:Balanced 2 x RJ45 (T1/E1)

C:D ports: Unbalanced 2 x BNC (T1/E1)

GNSS Port: SMA female

PPS Ports:3xSMA female (i/o)

Operation / Results

Graphic and tabular wander results
Navigation: by touch screen, keyboard, mouse
Remote Control: by VNC
Storage capacity: one week of results
Export: results in pdf/txt/csv through USB interface or SD card
Report export to remote host through Ethernet / IP
