Ether.Genius 1GbE/Sync/E1/T1/Datacom Tester

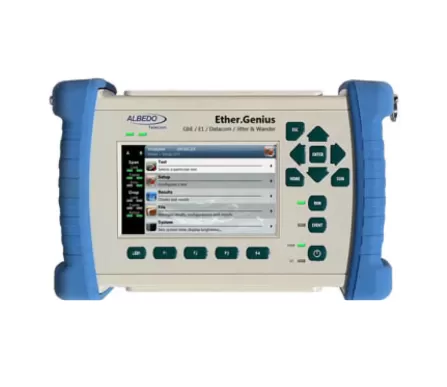

Ether.Genius is a handheld tester 100% suitable for labs or field use because is full equipped (IP/Ethernet/PTP/T1/E1), battery operated (up to 24h of operation), light (1.1kg) and very rugged. The unit is able to test Ethernet/IP networks up to 1Gb/s while supporting master/slave Sync-E/PTP emulation. It also has interfaces for PDH/T1/E1/E0 and IEEE C37.94. Operation modes includes Performance, Quality and Wander tests at all interfaces and the ability to emulate and analyse PTP/SyncE, while measuring Freq./Phase, PDV metrics, analyse/generate TIE/MTIE/TDEV and TE. A built-in Rubidium clock disciplined with GPS provides an accuracy of a few nsec.

You may buy just a last generation dual port 1GbE tester and then you may add other interfaces just when you need it by a simple and easy upgrade by code. Then you will be able to get the new firmware supporting the desired functionalities.

Ethernet/IP Testing
  • Frames: DIX, VLAN, Q-in-Q, CoS (DSCP/PCP),
  • MPLS, and Jumbo
  • Internet Protocol: IPv4 / IPv6 support
  • Frames: DIX, VLAN, Q-in-Q, CoS (DSCP/PCP), MPLS, and Jumbo
  • IP with UDP or arbitrary protocol
  • DHCP for source IP and ARP for destination MAC
Counts et statistics
  • Frame counts, IP traffic statistics, and bit rate
  • Top ten VLAN, MAC, IPv4 and IPv6 addresses
  • QoS: Latency, Delay variation, Loss ratio, SES, Availability, Out-of-Sequence, Duplicated
BER Tests et Patterns
  • Traffic generation: Continuous, Burst, Ramp, Random
  • PHY layer: RPAT, JPAT, SPAT, HFPAT, LFPAT, MFPAT, LCRPAT, SCRPAT
  • Layer 2/4 PRBS: 2e11-1, 2e15-1, 2e20-1, 2e23-1, 2e31-1
  • Layer 2/4 PRBS: all inverted versions
Symmetric/Asymmetric RFC-2544
  • Throughput
  • Latency
  • Loss
  • Back-to-back
  • System Recovery
Symmetric/Asymmetric eSAM (Y.1564)
  • Latency, Delay Variation, Loss, and Availability
  • Eight / four services (colour/not colour)
  • CIR, EIR, max, Througput
Loopback
  • L1 – L4 loopback modey
  • Traffic filtering by
  • sour/dest MAC/IP/Porty
  • VLAN, CoS (DSCP/PCP)y
  • Protocol

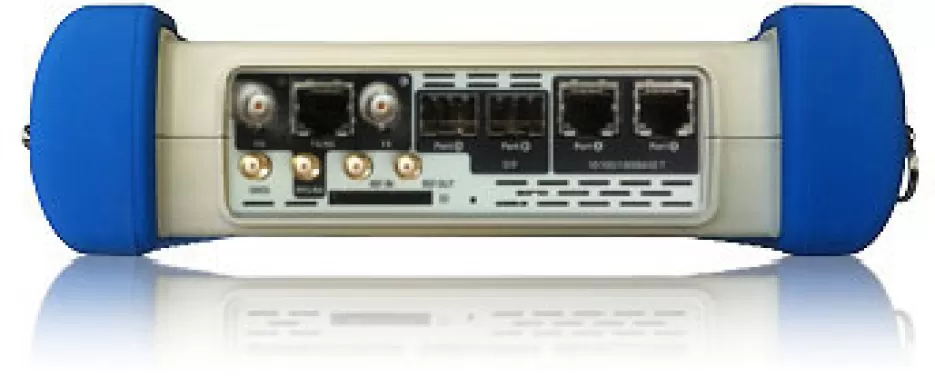

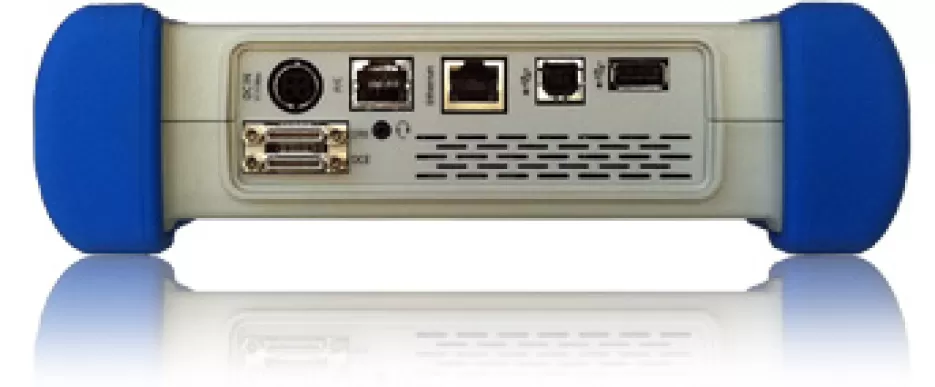

Platform

A:B ports:2 x SFP (100MbE, 1GbE)

A:B ports:2 x RJ45 (10MbE, 100MbE, 1GbE)

C:D ports: Balanced 2 x RJ45 (T1/E1)

C:D ports: Unbalanced 2 x BNC (T1/E1)

DTE/DCE ports: V.35, V.24 / RS 232, V.11 / X.21, V.36, RS:530

GNSS Port: SMA female

PPS Ports: 3xSMA female (i/o)

Operation / Results

Graphical results MTIE and TDEV
Navigation: by touch screen, keyboard, mouse
Remote Control: by VNC
Storage capacity: one week of results
Export: results in pdf/txt/csv through USB interface or SD card
Report export to remote host through Ethernet / IP
