High density hardened, fanless fiber fed switches able to support four 10G interfaces and up to sixteen high speed gigabit interfaces per device with optional PoE capabilities.

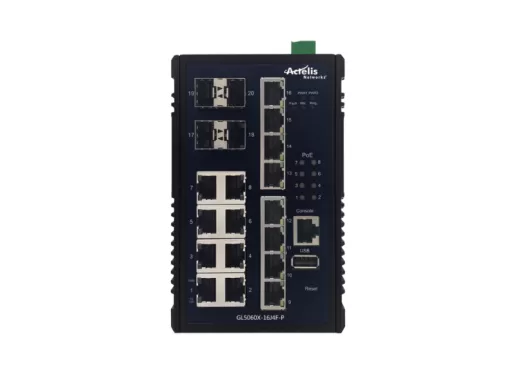

GL5060 incorporates a comprehensive set of security mechanisms that include high level authentication, advanced encryption capabilities, as well as sophisticated filtering and access control. The GL5060X Industrial Ethernet Switches are high density hardened, fanless fiber fed switches able to support four 10G SFP interfaces and up to 16 RJ45 gigabit interfaces per device with optional PoE capabilities.
The GL5060XR Industrial Ethernet L3 Switches are high density hardened, fanless fiber fed switches able to support four 10G interfaces and up to 16 high speed gigabit interfaces per device with optional PoE capabilities.
High Density Managed 10G switch – 20 ports
Industrial Design - Harsh environments, wide temperature range compact IP30
Indoor or Outdoor operations
Optional PoE (Power over Ethernet) ports
Flexible Network Redundancy - RSTP, MSTP, ERPS, LACP
Advanced Traffic Management - QoS- CoS, DSCP, WRR/SPQ Queuing, Storm Protection
L2 wire speed switching, 9K Jumbo frames
L3 Routing capabilities - RIP, OSPF, VRRP
Multicasting - IGMP Snooping - v1/v2/v3, up to 512 groups
Advanced Security: IEEE 802.1x, RADIUS & TACACS+
SNMP v1/v2c/v3
Easy Deployment / Configuration - USB storage, configuration-free replacement
Industrial automation protocols Ethernet/IP and Modbus TCP
Superior Reliability and Availability
