Falcon-RX 25G Timing Aware Switch

5G xHaul Timing Aware O-RAN Switch & PTP Grandmaster

The Falcon-RX is an essential element in delivering on the promise of 5G. Through high capacity, low latency transport and high precision synchronization, the Falcon-RX enables 5G RAN operation at its optimal throughput, on both telecom and enterprise environments.

The Falcon-RX combines the best of breed of the Transport and Timing worlds, in a single powerful package. Both elements are critical for 5G fronthaul deployments, along with support for the latest O-RAN architectures and recommendations.

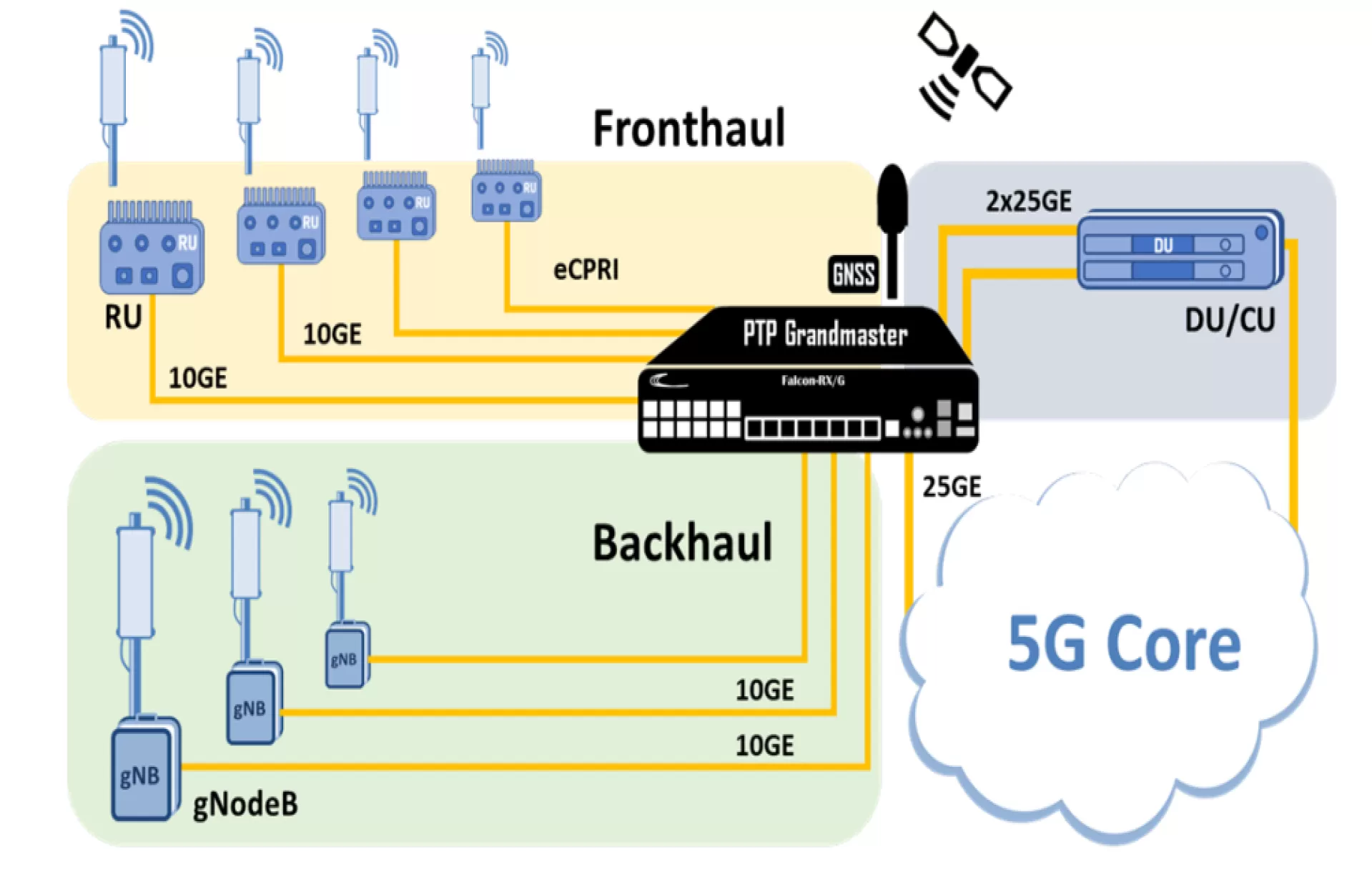

Typical Application: LTE/5G fronthaul/backhaul Convergence

  • The Falcon-RX’s Timing toolbox includes a complete set of capabilities, including GNSS based PTP GM/BC/TC/OC (sub nanosecond accuracy, Class C/D performance), along with robust SyncE and other sync interfaces. The system’s timing is orchestrated via Fibrolan’s
    user friendly SyncCenter.
  • The Falcon-RX series is equipped with a total of 20xSFP+/SFP28 ports, with configurable port setup for up to 200Gbps/FDX (400Gbps switch fabric capacity). All ports can operate at full wire speed, at any packet size (including Jumbo frames).
  • The Falcon-RX offers advanced Quality of Service (QoS) features including classification and mapping based on layer 1 through layer 4
    attributes, port and queue policing and shaping, with highly flexible scheduling schemes.
  • Support for Time Sensitive Networks (TSN)makes the Falcon-RX an even greater fit for fronthaul, as well as industrial environments (Industry 4.0, IIoT), where 5G infrastructure serves the automation of factories.

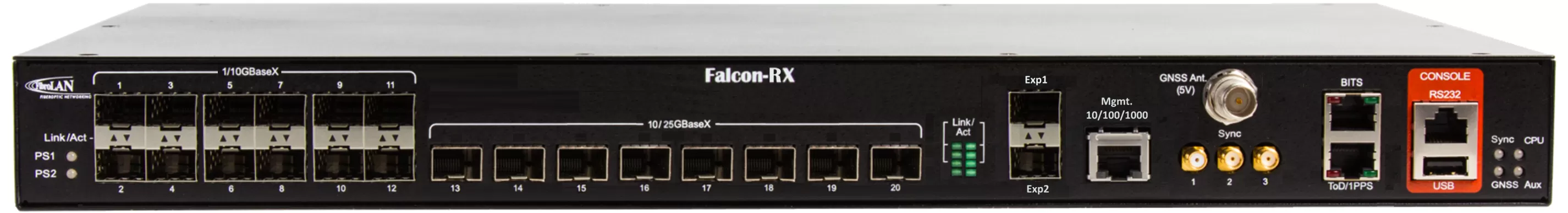

Module Image

Key Features

LTE/5G xHaul Transport and Timing switch

Integrated PTP Grandmaster

Compatible with O-RAN architectures

High capacity, low latency

Extensive Sync and Timing with SyncE and PTP (PTRC/GM, BC, TC)

Sub nanosecond timestamping, Class C/D performance

Time Sensitive Networking support

Based on 4th generation Falcon architecture

Advanced QoS and service level traffic management

Advanced OAM and management capabilities

Multiple protection mechanisms for link, path, and ring service resilience

Applications

Classification based on L1-L4 information
Ingress policing per port/queue
Hierarchical shaping and scheduling
Priority based flow control (802.1Qbb)
Scheduling: Strict, DWRR, hybrid
