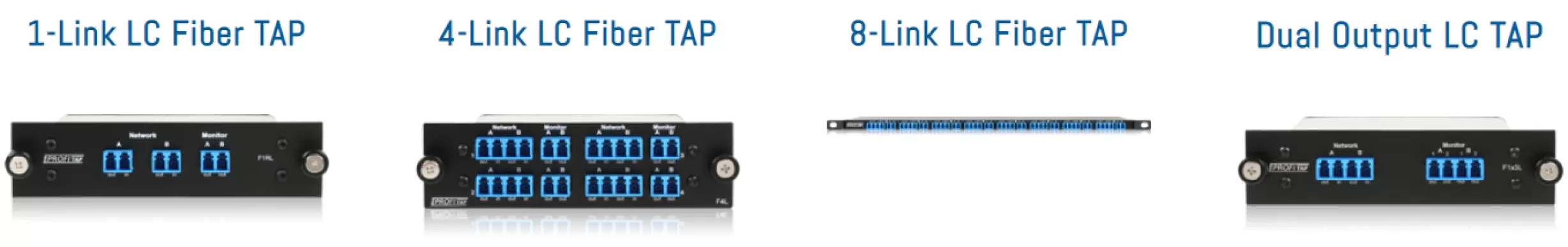

LC Fiber Optic TAPs are designed to enable flawless in-line monitoring of Single-Mode and Multi-Mode fiber optic networks. They use LC connectors with low insertion loss zirconia sleeve adapters, and are available in Single-Mode (1310/1550nm 9/125µm) and Multi-Mode (850/1300nm 50µm and 62.5µm), with split ratios ranging from 50/50 to 80/20.
The 4-Link LC Fiber TAP enables the monitoring of 4 LC fiber optic links. Up to 3 can be placed in a 1U Profitap Rack Frame (ref. ARF-1U).
Non-intrusive in-line monitoring
Permanent network link guaranteed
Monitoring of all OSI layers
No packet loss
No point of failure
Passive, unpowered
Various split ratios available
