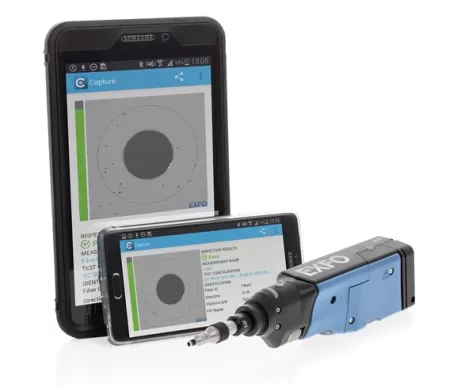

FIP-400B Fiber Inspection Scope Series

AUTOMATED WiFi AND WIRED INSPECTION TOOL WITH EMBEDDED ANALYSIS

Fully automated fiber inspection solution delivers both fast and consistent test results for single fiber and multifiber connectors from a single tool. Simplifies the overall process, provides accurate and consistent test results and provides pass/fail assessments quickly and easily

Automating The Complete Inspection Process
Enabled by a unique automatic focus-adjustment system, the FIP-430B and FIP-435B automate each operation in the test sequence,transforming the  critical inspection step into a quick and simple one-step process accessible to technicians of any skill level.

Key Features

100% automated for single fiber connectors, one step inspection process

Screenless operation enabled by pass/fail LED indicator

On-board connector endface analysis (IEC or custom standards)

Feature-rich ConnectorMax2 mobile application compatible with Android™ and iOS™ devices1

Full reporting capabilities on mobile devices and EXFO test platforms

All-day battery life that will never let you down

MF-ready scopes compatible with single-fiber and automated multifiber tips

Manufacturing automation using REST API available upon request

Output_Module
Screenless Operation
  • Thanks to the pass/fail LED, users can perform connector certification without having to look at their smartphone or MaxTester display screen to view the results. Users can simply focus on getting ready for their next inspection while being able to use both
    hands in the process.
  • User performs connector certification without looking at their smart device.
  • Fail User can attempt to clean connector first, or look at their smart device screen to see the problem (i.e., dirty or damaged).
  • Pass User goes to the next inspection point WITHOUT looking at a screen.

Applications

Central offices, exchanges and headends
Data centers
Wireless (e.g., 5G, FTTA, DAA, small cells)
Fiber-to-the-home (FTTH)
