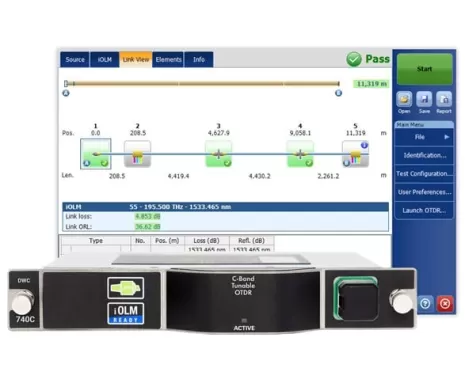

FTBx-740C xWDM OTDR Series

C-Band DWDM and all 18 CWDM ITU channels in single OTDRs for testing through MUX/DEMUX channels, providing a complete end-to-end link characterization or troubleshooting for commercial services, C-RAN networks and metro Ethernet deployments.

Wavelength-Division Multiplexing (WDM)

Is a technology that multiplexes (aggregates) several optical carrier signals onto a single optical fiber link by using different wavelengths in order to increase the bandwidth of an optical fiber link.



Key Features

CWDM+DWDM combo available in compact FTB-1v2

C-BAND ITU DWDM grid channels 12-62 selection in a single

OTDR port

18 CWDM channels covered in a single OTDR port

Test through MUX/DEMUX/OADM

In-service testing of active networks

High-resolution and short dead zones

Select favorite channels list

Output_Module

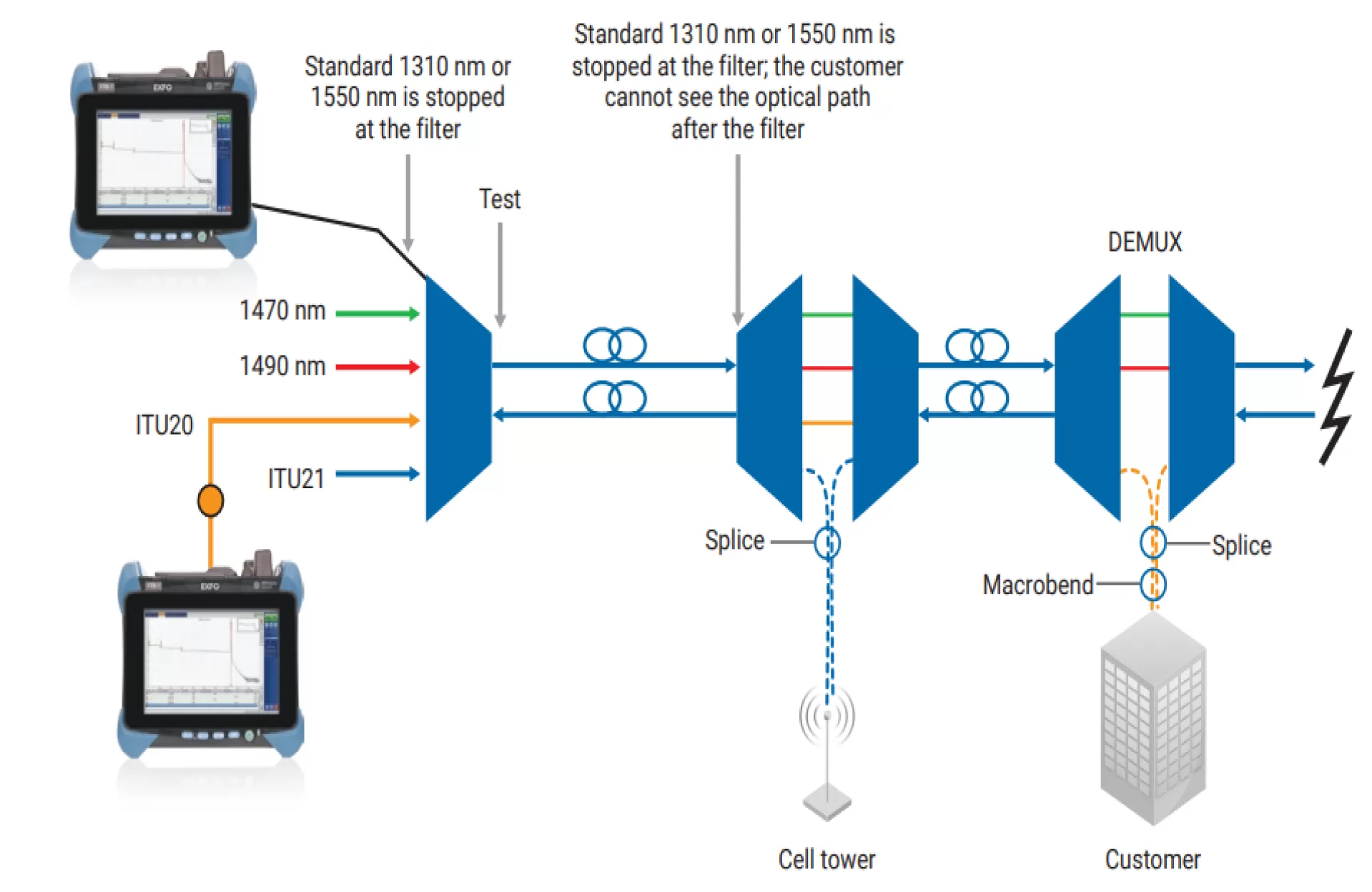

Use A xWDM tunable OTDR for
  • Single-ended CWDM/DWDM fiber characterization
  • Validating the continuity and end-to-end loss through MUX, OADM and DEMUX, during construction
  • In-service testing using the customer’s wavelengths port—all without impacting other customer wavelengths and with no downtime
  • Troubleshooting and characterization by a single operator from the heas-end

Applications

Single-ended construction and troubleshooting solution
CWDM and DWDM metro Ethernet links
Commercial services deployments
Fiber deep, Remote PHY and node splitting
CBH antenna feeds
