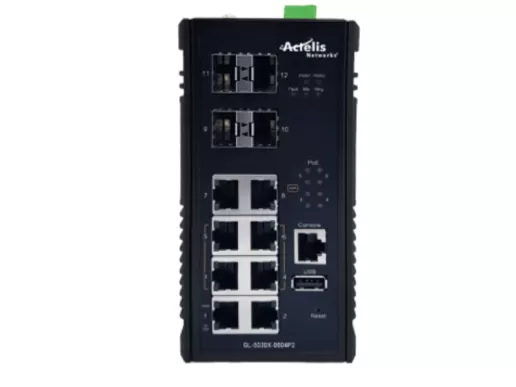

The GL5030XR Industrial Ethernet Switches are high density hardened, fanless fiber fed switches able to support four 10G SFP interfaces and up to 8 RJ45 gigabit interfaces per device with optional PoE capabilities
The GL5030XR is part of Actelis’ DIN Rail family of access switching products designed for industrial, intelligent traffic network, surveillance, pipeline and utility applications. The GL5030XR family are cost optimized, managed 10G switches supporting multiple ten and one gigabit Ethernet connections that allow multiple sensors or cameras at various locations to be connected in a linear chain, MSTP/RSTP/STP mesh or Fast healing ERPS ring configurations.
The GL5030XR family offer wire-speed switching across 12 ports, featuring an extremely small factor, fanless design, and DIN rail mounting, the GL5030XR family is ideal for deployment in almost any traffic, utility, or industrial networks. The GL5030XR-8J4F-P supports 8 PoE (Power over Ethernet) ports with a maximum of 30W per port (802.3af and 802.3at). The GL5030XR family also supports L3 functionality including Static Routing, RIP, OSPF and VRRP.
High Density Managed 10G switch – 12 ports
Industrial Design Harsh environments, wide temperature range compact IP30
Optional PoE (Power over Ethernet) ports
Flexible Network Redundancy RSTP, MSTP, ERPS, LACP
Advanced Traffic Management QoS- CoS, DSCP, WRR/SPQ Queuing, Storm Protection
L2 wire speed switching 9K Jumbo frames
L3 Routing capabilities RIP, OSPF, VRRP
Multicasting IGMP Snooping - v1/v2/v3, up to 512 groups
Advanced Security IEEE 802.1x, RADIUS & TACACS+ SNMP v1/v2c/v3
Easy Deployment / Configuration IEEE 802.1x, RADIUS & TACACS+ SNMP v1/v2c/v3
Industrial automation protocols Ethernet/IP and Modbus TCP Superior Reliability and Availability
