10-20 Port Industrial Managed L3 Switch with 10G Uplink

10-20 Port Industrial Managed L3 Switch with 10G Uplink

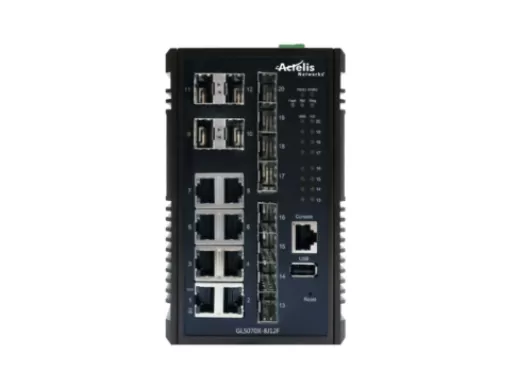

The GL5070XR Industrial L3 Switches from  are high density hardened, fanless fiber fed switches able to support two to four 10G interfaces and up to 16 high speed  gigabit interfaces per device.

The GL5070XR is part of Actelis’ DIN Rail family of access switching products designed for industrial, intelligent traffic network, surveillance, pipeline and utility applications. The GL5070XR is a cost optimized, managed 10G switch supporting multiple ten and one gigabit Ethernet connections that allow multiple sensors or cameras at various locations to be connected in a linear chain, MSTP/RSTP/STP mesh or Fast healing ERPS ring configurations

The GL5070XR offers wire-speed switching across a maximum of 20 ports, featuring an extremely small factor, fanless design, and DIN rail mounting, the GL5070XR is ideal for deployment in almost any traffic, utility, or industrial networks.

The GL5060XR family also supports L3 functionality including Static Routing, RIP, OSPF and VRRP. Environmentally hardened with redundant power inputs, and
featuring a robust, field-proven design, the unit is protected against over voltage and over current conditions, ensuring high reliability and trouble-free operation.
