36 Port Industrial Managed L3 Switch with 10G Uplink

36 Port Industrial Managed L3 Switch with 10G Uplink

The GL6040XR product line is part of Actelis’ family of switching products designed for industrial, intelligent traffic network, surveillance, pipeline and utility applications. Complementing the ML684Dx, which supports both bonded copper and fiber, and switches in the ML510D family, the GL6040XR is a cost optimized, fiber-fed only unit supporting multiple Gigabit Ethernet connections that allow multiple sensors or cameras at various locations to be connected in MSTP/RSTP/STP mesh or Fast healing ring configurations.

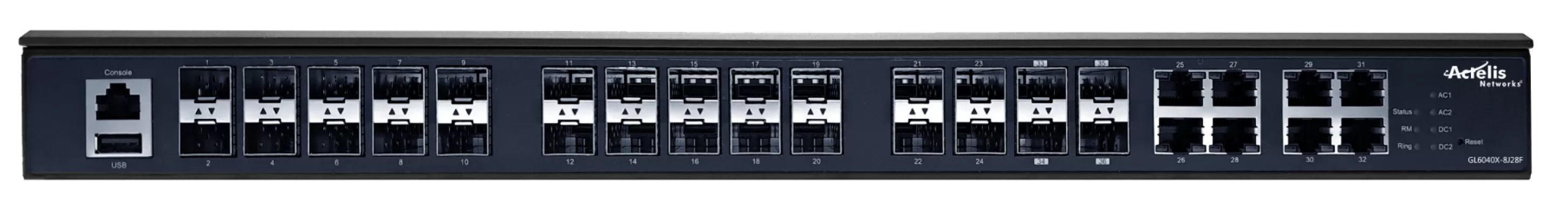

The GL6040XR offers full Ethernet switching capabilities, supporting 4 10GE SFP ports for connection to the core network, and a total of 32 client ports on each device. The GL6040XR is ideal for deployment in any environment including non-air-conditioned locations.

The GL6040XR also supports L3 functionality including Static Routing, RIP, OSPF and VRRP. With redundant power inputs, and featuring a robust, field-proven design, the unit is protected against over voltage and over current conditions, ensuring high reliability and trouble-free operation.
