A fully featured Handheld Optical Power Meter used for testing fiber optic communications systems. Superior measurement confidence is achieved through a combination of excellent basic accuracy, intuitive use, and rugged reliability. Options cover power levels from +33 to -70 dBm, all useful wavelengths, many connector styles including duplex / ribbon, and large core POF fiber.

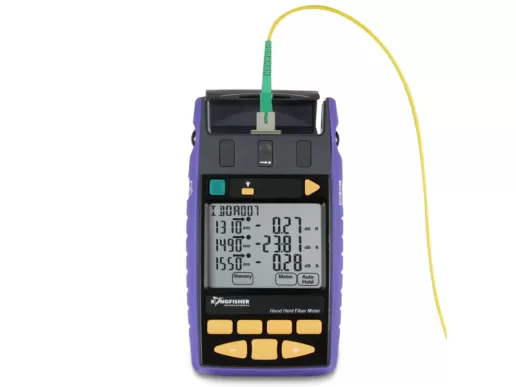

The KI 2600 Handheld Fiber Meter measures absolute or relative light levels and test tones in fiber optic systems. Autotest provides fast, easy, and automatic multi λ (wavelength) loss testing up to 6 λ, with up to 3 λ displayed simultaneously, along with the respective source nominal power levels. Any Kingfisher Autotest light source/LTS with matching λ can be used. The meter displays mW, µW, nW, dB, dBm to 0.01 dB resolution, with no range changing delays. A separate reference for each λ is stored and displayed. Superior high-power performance is achieved.
Unique in the industry, the tight Total Uncertainty specification covers all power levels, temperatures, connectors, and fibers, without warm up or user dark current offset. Calibration is ISO 17025 traceable.
Reliable, rugged & versatile
Simple to use
Very long battery life
LCD is large, clear, sunlight readable & backlit
Interchangeable connectors with dust cap/tilt bail
31 genuine 1% traceable calibration wavelengths
External power / charger via micro-USB port
Memory with text, timestamp, and USB dump
Simultaneous 3 λ loss display with Autotest source
Flexible real-time PC reporting software
Multi-Fiber ID tone for fiber identification
Optional visual fault finder
Power averaging mode for modulated signal
Max / Min recording
ISO 17025 traceable calibration certificate
External power / charging via USB
