KI6102 Series

KI6102 Series

Optical PON Power Meter

The KI 6102 series Optical PON Power Meter is used for testing FTTX PON fiber optic communications systems.
Common uses include live acceptance testing during service turn-up, and fault isolation during subsequent maintenance, particularly when an ONT has
failed. It is connected in-line on a live system, and simultaneously displays the power of all 3 operational PON wavelengths, including the return signal power

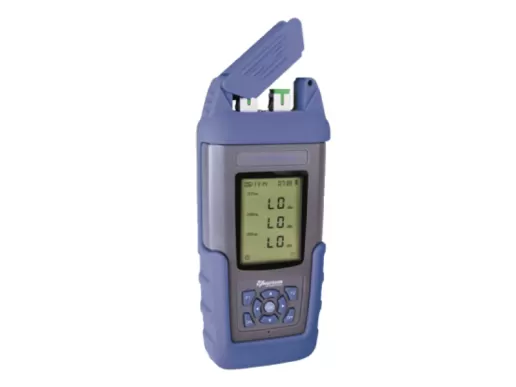

The KI 6102 handheld in-line PON Power Meter is ideal for measuring power in a typical live BPON/EPON/GPON FTTX communication link. This feature rich instrument makes for easy pass/fail results storage and reporting. Stable readings inspire user confidence. The clear sunlight readable and backlit display is combined with simple operation, to ensure good quality testing. The instrument features rugged construction, moisture resistance, rubber holster and captive connector dust caps. Operational savings come from a 3-year recalibration cycle and fast & simple operation. The meter displays dBm, W and dB. The resolution is 0.01dB. A separate reference for each λ can be stored. Pass/Fail display is available, and Pass/Fail value is user definable. The saved 3- test data with timestamp can be downloaded from the unit onto PC via USB connection using the Data Management Software.
