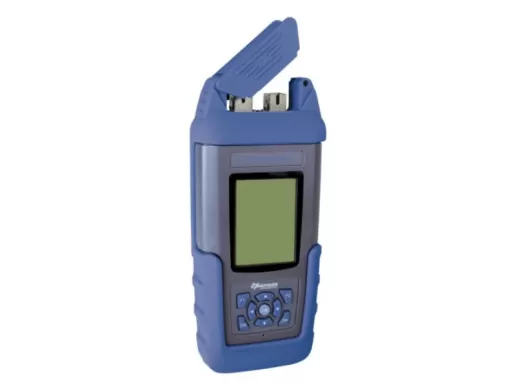

The KI 6106 series Optical PONPower Meter is used for testing FTTX PON fiber opticCommunications systems. Common uses include liveacceptance testing during serviceturn-up, and fault isolation during subsequent maintenance,particularly when an ONT has failed. It is connected in-line on a live system, and simultaneouslydisplays the power of all 4operational PON wavelengths,including the return signal power.
The KI 6106 handheld in-line 10G/XG PON Power Meter is ideal for measuring power in a typical live BPON/EPON/GPON FTTX communication link.
This feature rich instrument makes for easy pass/fail results storage and reporting. Stable readings inspire user confidence. The clear sunlight readable and backlit display is combined with simple operation, to ensure good quality testing. The instrument features rugged construction, moisture resistance, rubber holster and captive connector dust caps. Operational savings come from a 3-year recalibration cycle and fast & simple operation. The meter displays dBm, W and dB. The resolution is 0.01dB. A separate reference for each λ can be stored. Pass/Fail display is available, and Pass/Fail value is user definable. The saved 4test data with timestamp can be downloaded from the unit onto PC via USB connection using the Data Management Software.
Compact, rugged & light weight
For BPON/EPON/GPON/XGPON/XGSPON testing
Large, sunlight readable LCD display
In-line testing 1270, 1310, 1490, 1577 nm
1310, 1270 nm Burst Mode testing
Pass/Fail displays
Internal memory for 99 records of 4λ tests with timestamp
Backlit display
3 years calibration cycle
