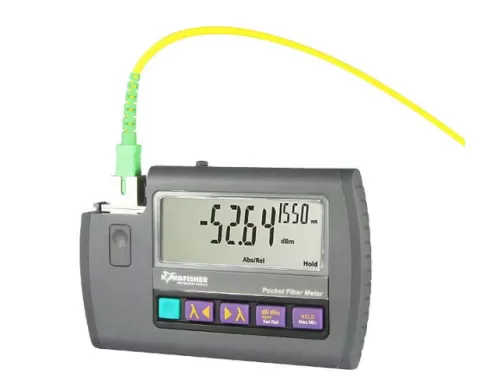

The KI 9600A series shirt-pocket Optical Power Meter is used for testing fiber optic communications systems. 2% traceable calibration accuracy,ease of use and high availability combine to achieve superior measurement confidence. Detector & calibration options cover a wide range of connector types, fiber types, common wavelengths and power levels from+24 to -60 dBm.
The small KI 9600A Pocket Fiber Meter is ideal for measuring absolute / relative light levels or test tones on single mode, multimode or plastic optical fiber (POF) systems. High traceable accuracy and ease of use make it perfect for field or laboratory.
Tough construction includes moisture resistance, rubber corners, a captive connector dust cap and it can be dropped over 2 meters onto a hard surface. This instrument meets MIL PRF 28800F Class 2.
When used with multiple KI 9800 sources, the Multi-Fiber ID feature uniquely identifies up to 12 fibers.
Shirt pocket size with spring clip
Patented low cost Interchangeable
connector
Multi-fiber ID for fiber identification
Large sunlight readable display
Displays dBm, dB, linear, tone Hz
Power averaging mode for modulated signal
Tamper-lock mode for low skill measurement
Simple to use
300-hour battery life
Max / Min recording & display hold
Up to 12 calibrated wavelengths
Compact, rugged & light weight
3-year recommended calibration cycle
