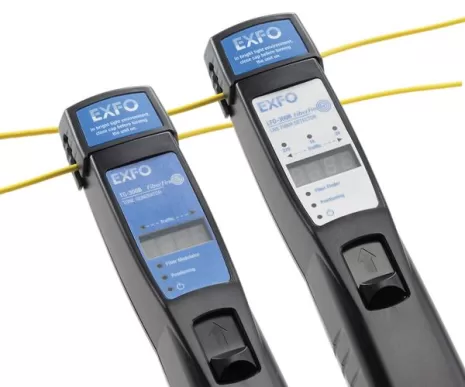

Performing network upgrade or optical testing requires a fiber to be disconnected. This is often easier said than done, since finding the right connection can be tricky, namely because of fiber mislabeling or poor record keeping. While the dark fiber can be identified using a tone generator (270 Hz, 1 kHz, 2 kHz), the live fiber identification technique often involves one technician pulling one end of the patchcord, with another technician trying to identify which patchcord is moving at the other end—a process that translates into long delays and can result in unnecessary service disruption. Combined with the TG-300B Tone Generator, the innovative LFD-300B FiberFinder™ live fiber identifier enables technicians to identify a specific live fiber without having to disconnect it and, above all, without having to guess.

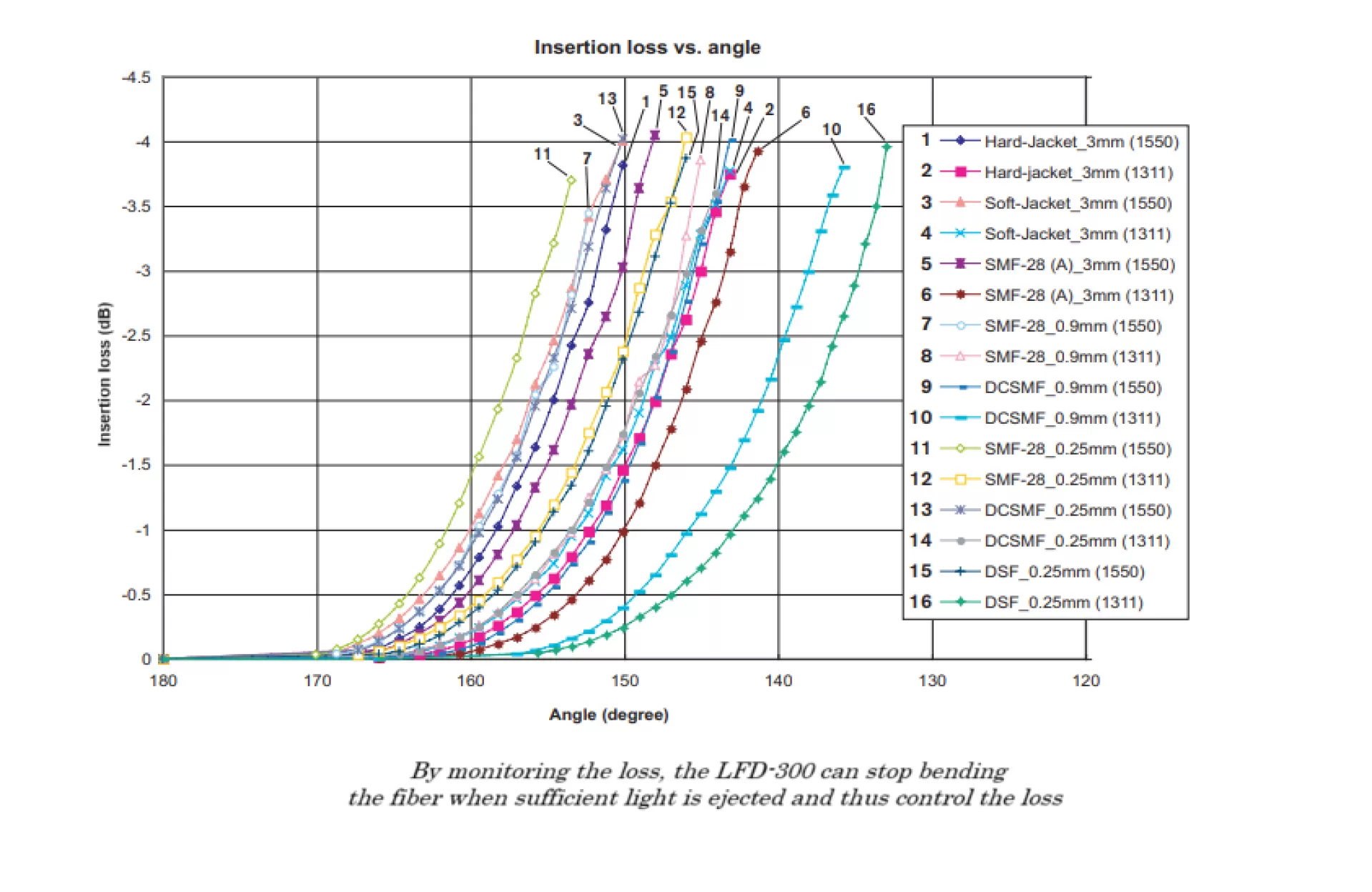

The LFD-300B FiberFinder brings a unique approach: the power loss is monitored as the angle is changed. Therefore, the angle is automatically optimized for each fiber type and each singlemode wavelength. This results in clear-cut advantages:
Pinpoints a specific live fiber using EXFO’s FiberFinder™ functionality
Induces minimal loss: ≤ 1 dB
ocates a particular dark fiber using tone recognition (270 Hz, 1 kHz, 2 kHz)
Three times faster test cycle (<6 s)
