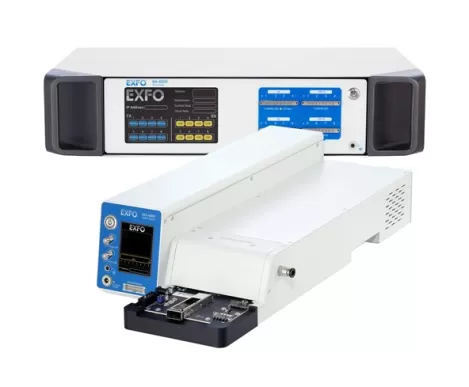

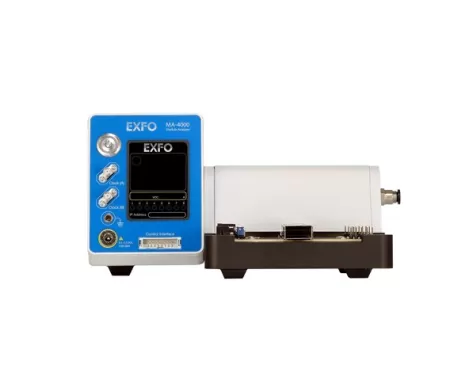

MA-4000 Module Analyzer

All one BER Tester -400G Transceiver Mass Production Solution with Integration of Bert, Power supply and MCB.

The all-in-one solution for transceiver qualification on the production floor, including a bit-error-rate tester, module compliance board (MCB) and power supply.

Smart MCB Design

  • Superior SI performance and long insertion life
  • Uses daughter board system (no external MCB required)
  • Supports QSFP-DD, OSFP, QSFP28, SFP-DD, SFP28.
  • (direct connection)
  • Easy to replace after connector insertion life cycle to
  • ensure reliability
  • One-fifth thermal cycling time compared to external MCB

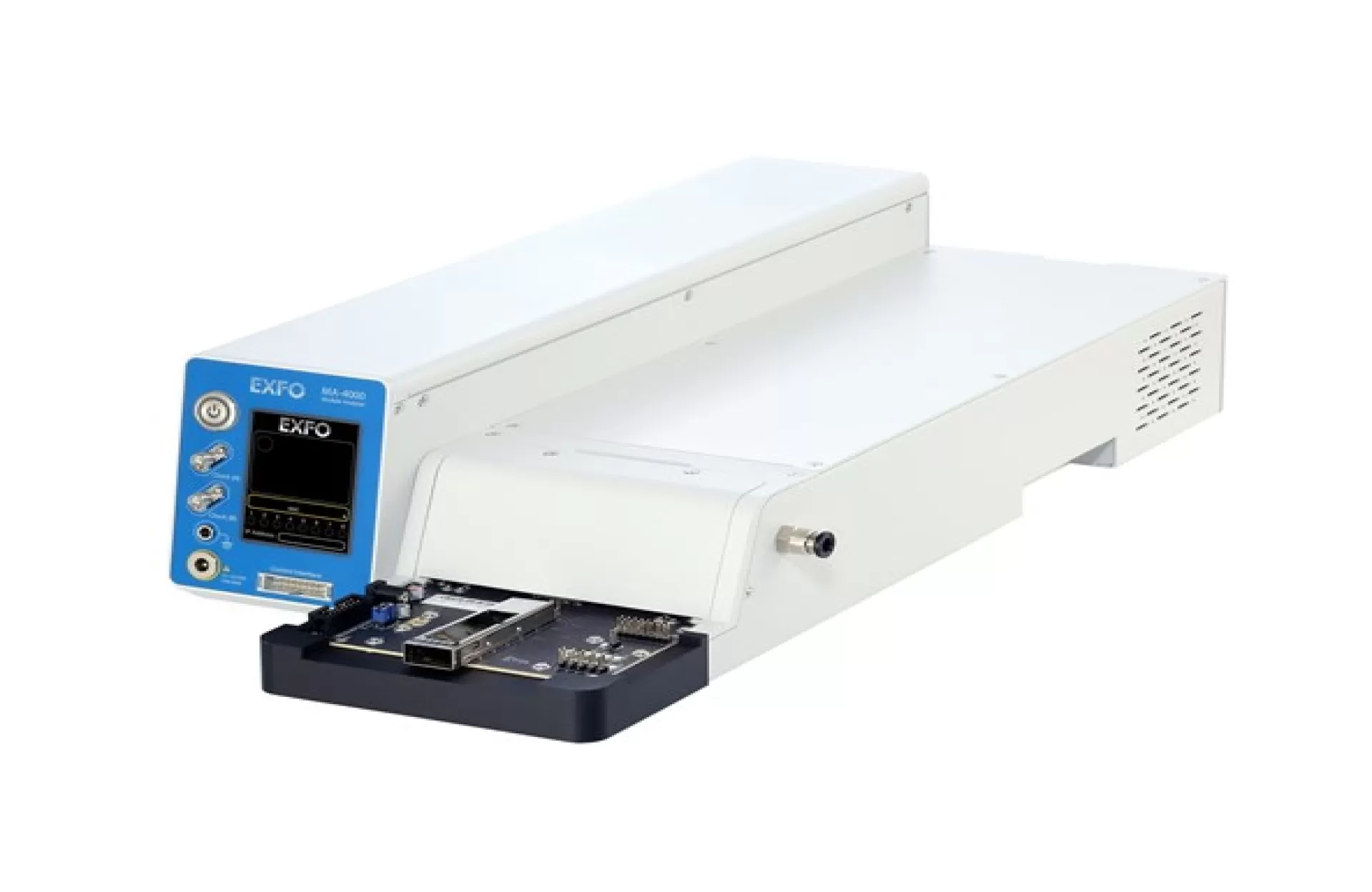

Module Image

Key Features

8 channels, 10 - 28 GBd supporting PAM4 and NRZ

Integrated MCB (no RF cable required)

High flexibility supporting the most popular transceivers.

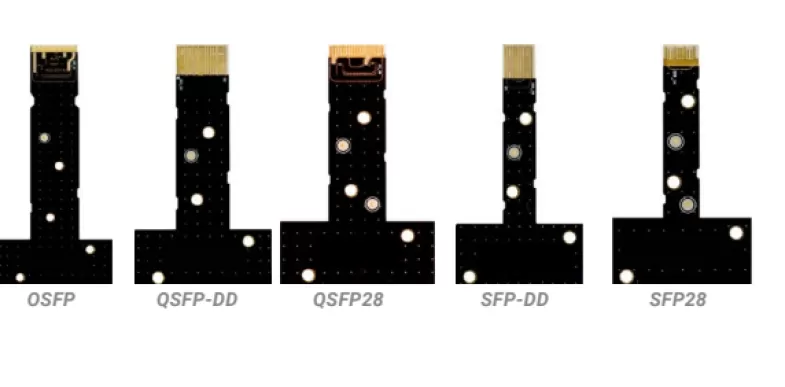

Daughter cards available: QSFP-DD, OSFP, QSFP28, SFP28, SFP-DD

Future-proof design with replaceable MCB

Built-in power supply for four-corner testing

C control function supported

Equipped with joint for dry air supply

Pre-FEC and post-FEC BER

Featuring FEC distribution (codewords vs symbol errors)

Output_Module

FEC Simulation Software

  • PRBS error check and correction
  • Powerful function for Burst Error Analysis
  • Pre-FEC and post-FEC BER
  • KP4/KR4 and low latency FEC protocols
  • FEC lane striping function.
  • FEC symbol error distribution plot: codewords vs. symbol errors
  • FEC margin auto-calculation
