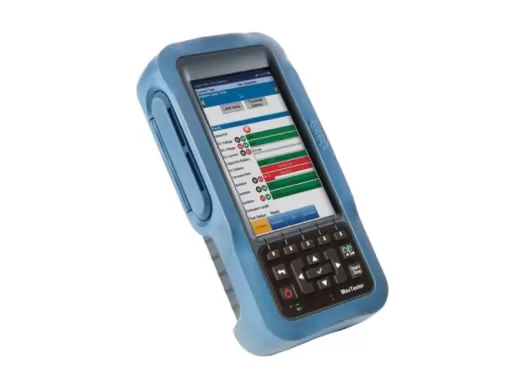

Max Tester 610 Copper Test Set

Smarter Copper Testing For Installation Technicians

The MaxTester 610 is designed for the installation and repair (I&R) of voice and DSL circuits. Its small form factor, rugged design and easy-to-use menus make it the ideal tool for outside-plant I&R technicians. With the Max Tester 610, the testing process is highly automated, enabling technicians to close their jobs quickly and efficiently. In addition, the large display of the Max Tester 610 makes it even more user-friendly, and when it comes to saving results, it provides technicians with many connectivity options for uploading tests and compiling reports.

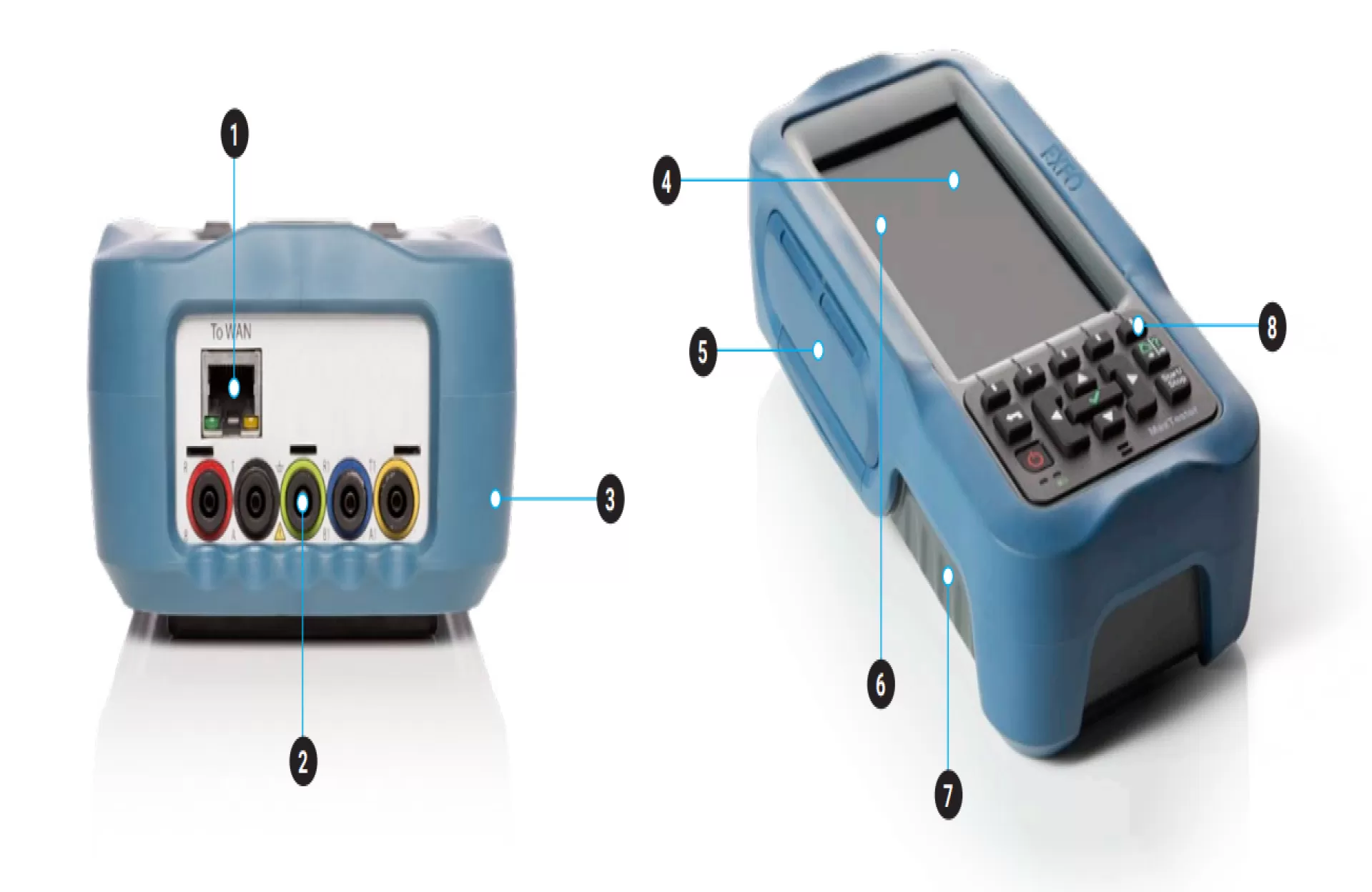

Key Characteristcs

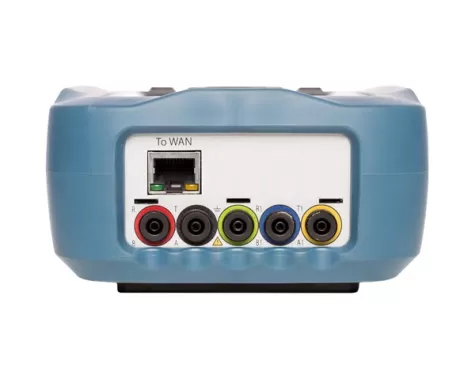

  • Ethernet connector sealed
  • Against the environment
  • Copper connectors sealed
  • Against the environment
  • All-round rubber bumper
  • Touchscreen color LCDdaylight visible
  • Interface connections water and dirt protected
  • Innovative and icon-driven user interface
  • Handgrip area
  • Simple keypad
Module Image

Key Features

Aligns with existing methods and procedures; perform single‑ended testing or testing with a far-end device (FED) to minimize repair times and costs

Full suite of digital multimeter measurements to quickly and effectively determine the electrical health of the network

Optional TDR with variable gain and RFL/K-test allows service providers to scale the product based on existing or new methods and procedures

SmartR™ features allow users to quickly and accurately determine physical copper circuit quality and locate faults, in addition to performing high-voltage

Balance testing on inactive pairs

Designed to face the challenges of the outside plant environment with an IEC IP54 rating

Configurable pass/fail results for automated closeout testing; upload the results to the cloud with ease

Output_Module

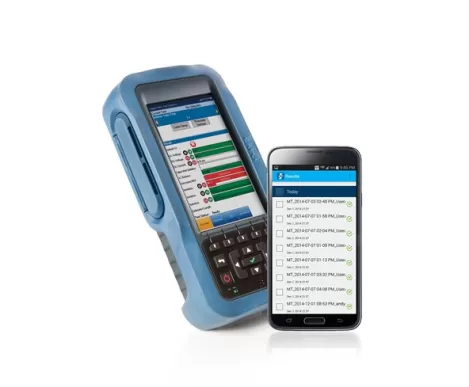

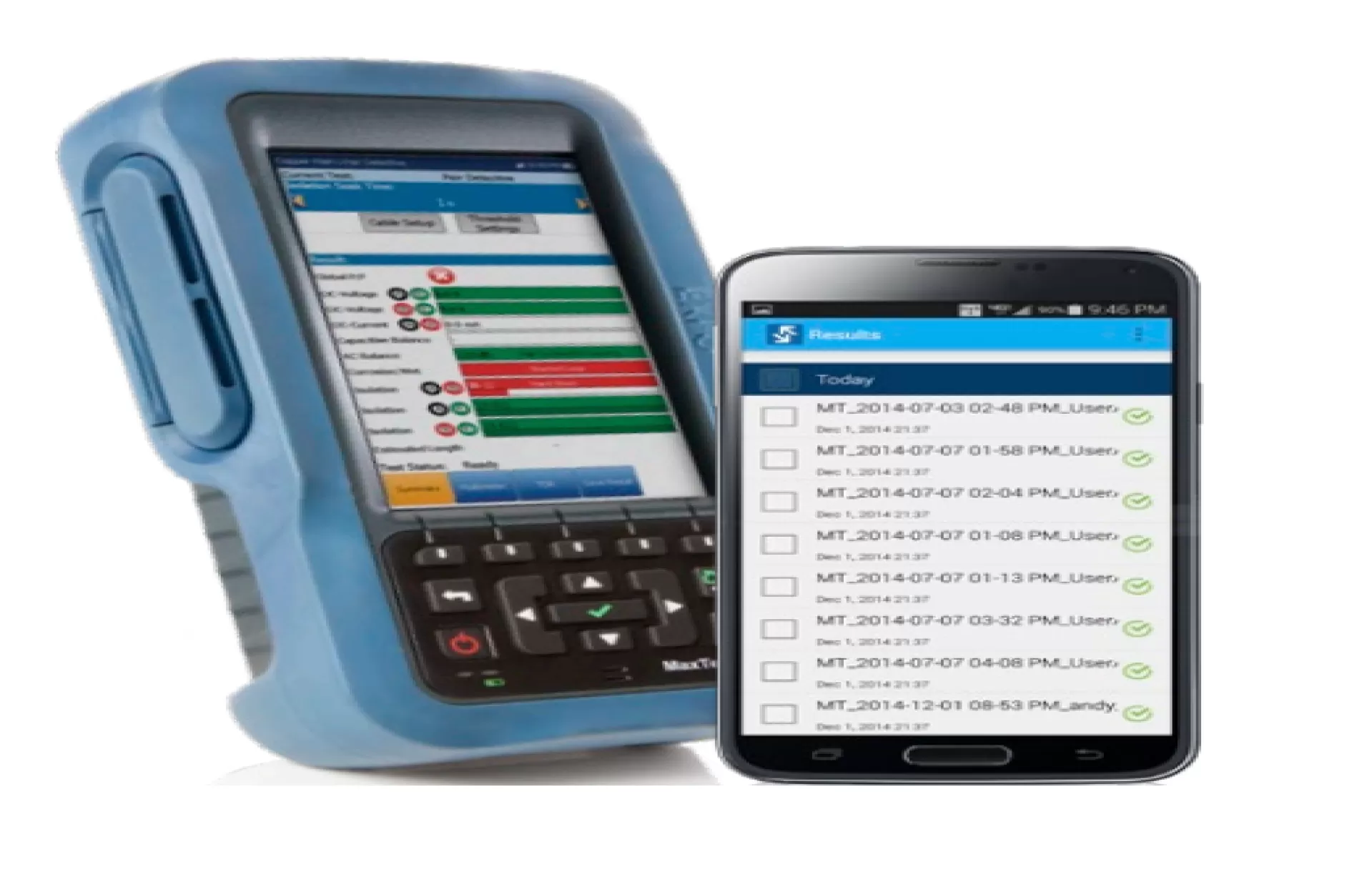

Real Time Copper Test Results Upload

  • Copper test result are uploaded, live from the site
  • GPS tagging gives visibility of location of test for mapping of test history and network performance
  • Ensure compliance to service provider workflow process
  • Flexibility to upload test results to an FTP or HTTPS server
  • Secure, password-protected connection to upload and access results

Applications

Detection of potential bottlenecks on subscriber loops to ensure high-quality, consistent and error-free multi play services
35 MHz spectrum analysis for circuit qualification in any VDSL2 band plan (8, 12, 17, 30 and 35 MHz)
Loop and fault analysis, using proven TDR and RFL/K-test techniques for VDSL2 or ADSL2+ prequalification
Measurement and reporting of suspect voltages, opens, shorts and balance issues from a single end, or utilizing an FED that can be
Remote controlled by the Max Tester to put the necessary opens and shorts at the end of the circuit under test
Determine the maximum ADSL2+, VDSL2-17a and VDSL2-35b data rates that a copper loop could support, prior to connecting/ provisioning the circuit and equipment, with the Max Tester’s Data Rate Prediction (ADRP) pre-qualification report
