PDS-1/10G10G Multiport WAN Emulator

Portable Delay Simulator

The PDS-1/10G Portable Delay Simulator allows network impairments for bandwidth restriction, latency, jitter, loss and re-ordering at link rates up to 10GbE. The PDS-1/10G allows changes-on-the-fly and has a real-time statistic screen with a packet counter reset. The unit supports 1G or 10G network emulation for one low cost.

The versatile PDS-1/10G is easily portable in a laptop case, it allows desk or bench top testing, wall mount or 1U Rackmount installation with a unique compact enclosure design. The unit is configured via a Graphical User Interface(GUI) and has no cumbersome software to install. The unit is backed with a strong 3-year warranty including maintenance software upgrades. The PDS-1/10G is a must have test tool for product development / demonstrations, network validation, VoIP, benchmark testing, video / IPTV simulation and website performance.



Key Features

Ideal for Software Developers, Trade Shows, Customer Demonstrations, Lab Bench Testing

Emulation of Network Delays and Impairments

Validate and Optimize your Network before Deployment to avoid Costly Application issues

Line Rate Performance in Bridge or Route Modes

Interfaces Available- 10/100/1000 or 10G

Easy to use - GUI interface

Bandwidth - 300bps to 10G in 1bps increments

Delay - 0 ms to 10 sec. in 1ms or Decimal increments

Supports Packet Loss and Re Ordering

Allows decimal entry and changes-on-the-fly

Supports Bandwidth Restriction

Real time Traffic Graph and Statistics

Built-in Scheduler

Supports 90-240VAC with UL/ CSA/TUV

Applications

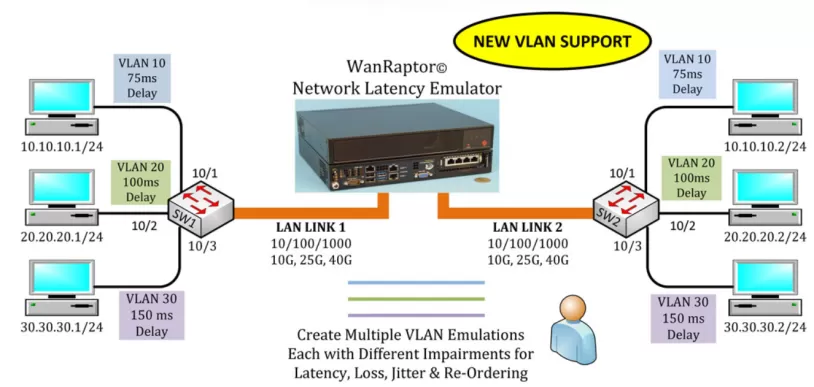

An embedded box appliance that will mimic the behavior of a WAN/LAN network, inserted between LAN segments supporting Bridge or Routing functions with network impairments such as bandwidth, delay, loss & re-ordering
Configuration Management Ports – GUI Access Two Independent fixed 10/100/1000 Ethernet Ports
Bridge or Routing Support All emulations support Bridge or Subnet Routing

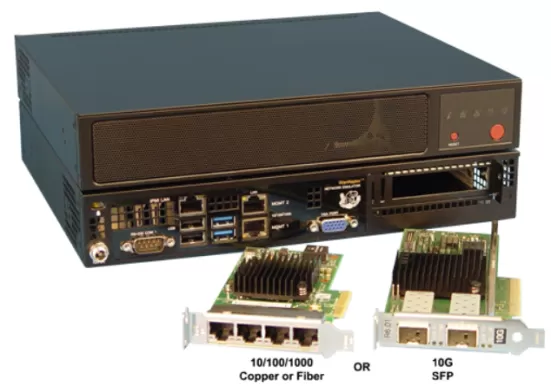

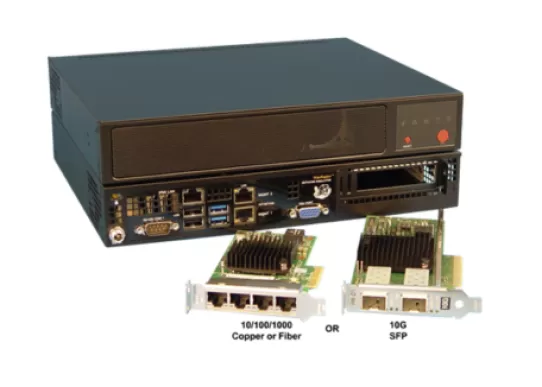

Emulation Interfaces 10/100/1000 Copper or Fiber 10G with Optional SFP+ Inserts
Emulation Bandwidth Link Rates 100bps - 10GbE bi-directional or split speeds, Kbps, Mbps or Gbps
Emulated Latency Settings Constant: 0 to 10 Seconds, Decimal Format Supported Also Supports Uniform, Exponential & Inter-Packet
Emulation Impairments Packet Loss: 0 to 100%, Decimal Inputs Packet Re-Ordering: 0 to 100%, Decimal Inputs Jitter: By use of different delay options Bandwidth Restriction
VLAN Emulation Support Create up to ten C-VLAN emulations within a single LAN, each with its own impairments
Link Throughput Line Rate for 10/100/1000 Line rate for 10G, frames to 512 bytes 10G frames for 64/128 at 6.5G & 8.5G ** Under Full Load
Emulation Statistics Each link is capable of real-time statistics via GUI
Password Protection Implemented via the user LAN Management Port
Power Source AC Mains: 90-240VAC @ 10%, 50/60Hz, Auto Range
