Zeus Dual Port 1GbE Traffic Generator / Analyzer

Zeus is a tester designed to install and maintain the communications in the power industry. It supports legacy and new generation interfaces in order to verify Ethernet / IP, PTP, SyncE, ToD, IRIG-B, T1 / E1, C37.94, RS-232, G703 and protocols such as GOOSE, SV or MMS, therefore you will get a perfect vision and control of your infrastructures improving protection and data acquisition. In substation automation many resources require accurate synchronization ranging from microseconds to milliseconds: In substation automation many resources require accurate synchronization ranging from microseconds to milliseconds:

  • Applications that use SV / GOOSE and need to minimize latency
  • Data acquisition at IED, RTU and MU
  • SCADA and the MMS protocol
  • Line protection schemes
  • Events recording
  • Synchro-phasors deployed across the WAN to monitor the power grid

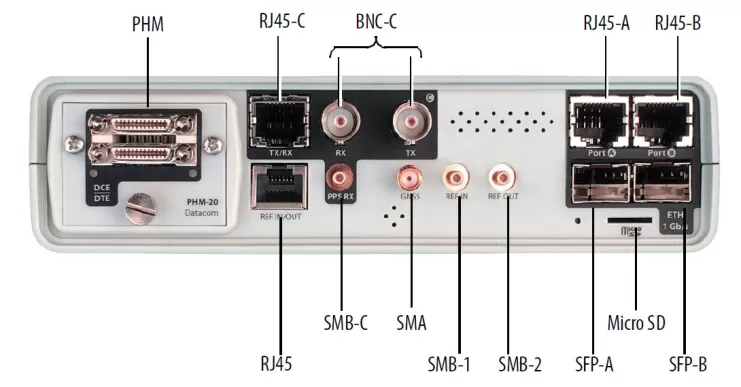

Multiport Interfaces
  • A:B ports: 2 x SFP (100MbE, 1GbE)
  • A:B ports: 2 x RJ45 (10MbE, 100MbE, 1GbE)
  • C:D ports: Balanced 2 x RJ45 (T1/E1)
  • C:D ports: Unbalanced 2 x BNC (T1/E1)
  • GNSS Port: SMA female (GNSS)
  • PPS Ports: 3 x SMB female (Time refs.)
Hot swappable modules
  • C37.94
  • Datacom DTE/DCE: V.11/X.24, V.24/V.28, V.24/V.35, V.24/V.11 (V.36/RS449)
  • VF Port
  • Ethernet 1000 Base-T
  • Codirectional – G703
Ergonomics
  • Size: 260 x 160 x 63 mm
  • Weight: 1.9 kg
  • Light and easy to carry in a small bag
  • Start: Manual / Timed with optional password
Counts et statistics
  • Frame counts, IP traffic statistics, and bit rate
  • Top ten VLAN, MAC, IPv4 and IPv6 addresses
  • Light and easy to carry in a small bag
  • QoS: Latency, Delay variation, Loss ratio, SES, Availability, OOS, Duplicated
BER Tests et Patterns
  • Traffic generation: Continuous, Burst, Ramp, Random
  • PHY layer: RPAT, JPAT, SPAT, HFPAT, LFPAT, MFPAT, LCRPAT, SCRPAT
  • Layer 2/4 PRBS: 2e11-1, 2e15-1, 2e20-1, 2e23-1, 2e31-1
  • Layer 2/4 PRBS: all inverted versions
Symmetric/Asymmetric RFC-2544
  • Throughput
  • Latency
  • Loss
  • Back-to-back
  • System Recovery
Symmetric/Asymmetric eSAM (Y.1564)
  • Latency,Delay Variation, Loss, and Availability
  • Eight / four services (colour/not colour)
  • CIR,EIR,max,Througput
Loopback
  • L1 – L4 loopback mode
  • Traffic filtering by
  • Sour/dest MAC/IP/Port
  • VLAN, CoS (DSCP/PCP)
  • Protocol

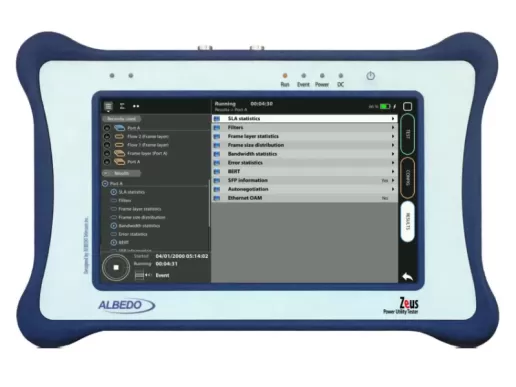

Operation / Results

Graphic and tabular wander results

Navigation: by touch screen, keyboard, mouse

Remote Control: by VNC

Storage capacity: one week of results

Export: results in pdf/txt/csv through USB interface or SD card

Report export to remote host through Ethernet / IP

Ethernet/IP Testing

Streams: may use individual sour/dest. addresses and bandwidth profile
Internet Protocol: IPv4 / IPv6 support
Frames: DIX, VLAN, Q-in-Q, CoS (DSCP/PCP), MPLS, and Jumbo
IP with UDP or arbitrary protocol
DHCP for source IP and ARP for destination MAC
