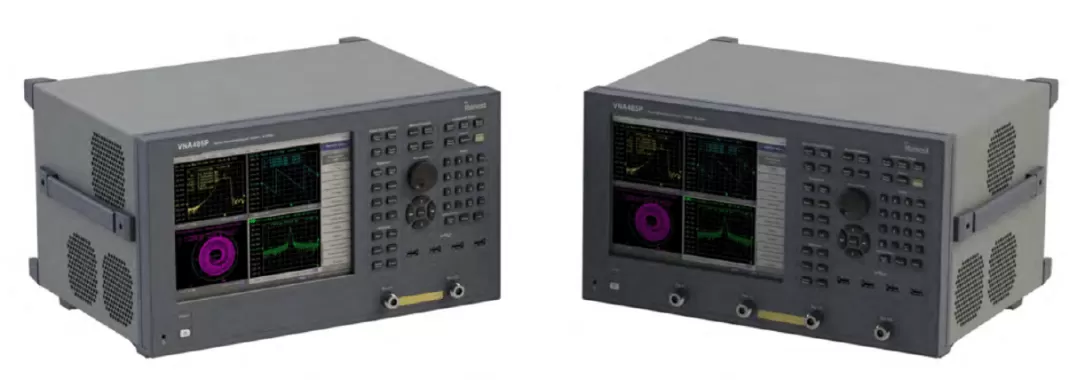

VNA485P is a high performance 8.5GHz vector network analyzer with 2 or 4 ports. It can be widely used in R&D and productions, etc it can provide customers with accurate measurements in the research and production of RF components such as filters, antennas, circulators, isolators, amplifiers, switches, etc.
VNA485P provides excellent performance in terms of dynamic range, trace noise, accuracy and stability. its high temperature stability, accuracy consistency, and reliability ensure accurate measurement results during long term operation.
Measurement frequency range:100kHz-8.5GHz
Excellent dynamic range: 135dB(typ.)
Ultra low trace noise:<0.005dB RMS (IFBW=70kHz)
Ultra High temperature stability: <0.01 dB/C
Outstanding measurement speed
10.4 - inch touch screen
The remote control interface supports VISA and SCPI protocols, and is compatible with customer's testing software
Full Calibration algorithms (including SOLT, SOLR, TRL, response calibration etc.)
compatible with main- stream mechanical and electronic calibration kits
Support TDR time- domain impendence testing
Automatic port extension
Support fixture simulation (de embedding, port matching impendence conversion, balun, etc).
Support amplitude phase consistency calibration and measurement
Two independent excitation sources
