Wan Raptor Network Emulator

10/100/1000, 10G, 25G & 40G

The new WanRaptor™ Network Emulator is an easy to use, economical test solution to validate your applications in a lab environment by emulating bandwidth, latency, loss and jitter of wide area networks. With the purchase of the WanRaptor™ you receive a COTS hardware system with embedded software supporting network emulation on 10/100/1000, 10G, 25G and 40G optional interfaces. The product has an easy to use GUI interface and allows changes On-The-Fly for real time test and result monitoring. Competing products require expensive hardware upgrades or confusing bandwidth license upgrades to support different media types and in most cases require a complete new hardware purchase. The WanRaptor™ overcomes all those drawbacks in a very economical desktop or rackmount enclosure.

The WanRaptor™ is capable of any port LAN to LAN emulation or create up to ten VLAN emulations within a single LAN, each with its own impairments.

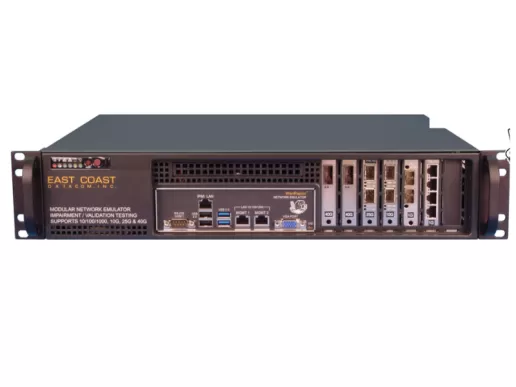

The WanRaptor™ allows the user to easily view packet throughput and packet impairment performance with our intuitive statistics screen in realtime. The WanRaptor™ is available in a small desktop / portable model, 1U or 2U 6-Slot model that houses multiple LAN interfaces which can be rack mounted. It is powered by an integrated 90-240V 50/60Hz power supply. The WanRaptor™ has a 3-year warranty and is fully supported during the warranty period.

Key Features

Unique COTS Architecture with Repeatable Results / Accuracy within 50 microseconds

Supports 10/100/1000, 10G, 25G & 40G Interfaces for Network Emulation in a single embedded box and no software to install

Impairments – Bandwidth, Delay, Jitter, Loss, Re-Order

Supports Bridge / Route Modes

Validate and Optimize your Network before Deployment to avoid Costly Application issues

Easy to Use - GUI Interface

Supports changes On-The-Fly

Bandwidth – Up to 40G

Latency Settings - 0 to 8 seconds with 50 microsecond Accuracy

Other Features - Real Time Traffic Graph and Network Statistics, Output Reports

Approvals - UL, CSA, CE, FCC and RoHS

Available in Desk Top / Portable Standalone, 1U or 2U Sturdy Rack Mount Enclosure, 90-240VAC240VAC

Applications

An embedded box appliance that will mimic the behavior of a WAN/LAN network, inserted between LAN segments supporting Bridge or Routing functions with network impairments such as bandwidth, delay, loss & re-ordering
Configuration Management Ports – GUI Access Two Independent fixed 10/100/1000 Ethernet Ports
Bridge or Routing Support All emulations support Bridge or Subnet Routing

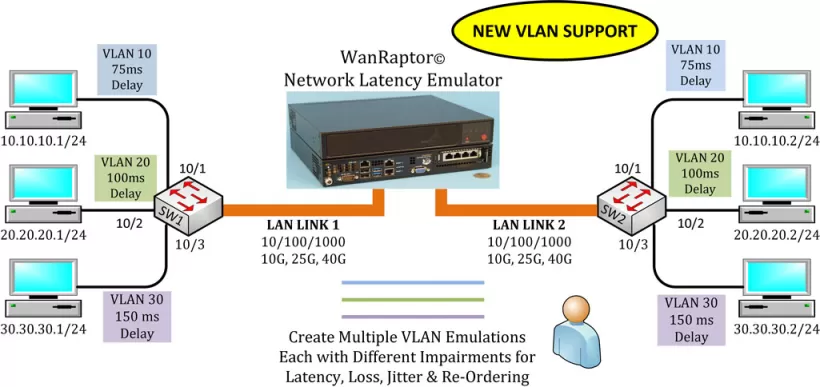

VLAN Emulation Support Create up to ten VLAN emulations within a single LAN, each with its own impairments
Emulation Interfaces 10/100/1000 Copper or Fiber, Optional SFP 10G, 25G and 40G SFP+ Inserts
Emulation Bandwidth Link Rates Up to 40GbE bi-directional or split speeds, Kbps, Mbps or Gbps
Emulated Latency Settings Constant: 0 to 10 Seconds, Decimal Format Supported, Also Supports Uniform, Exponential & Inter-Packet
Other Emulation Impairments Packet Loss: 0 to 100%, Decimal Inputs Packet Re-Ordering: 0 to 100%, Decimal Inputs Jitter: By use of different delay options
VLAN Emulation Support Create up to ten C-VLAN emulations within a single LAN, each with its own impairments
Link Throughput Full Line Rate for 10/100/1000 & 10G (64-9000byte Packets) 25G and 40G Consult Factory
Emulation Statistics Each link is capable of real-time statistics via GUI
